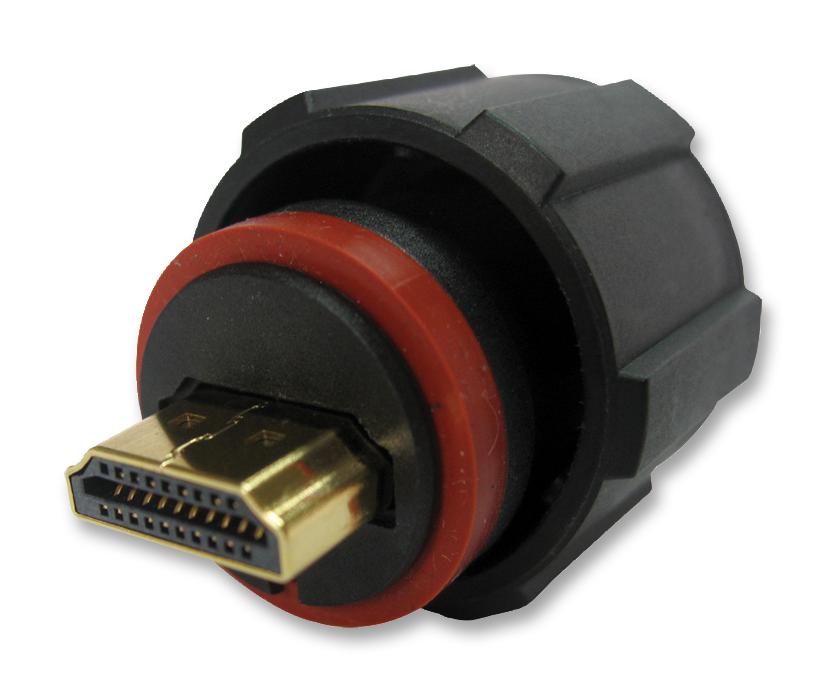

EDAC 690W19260011 Waterproof HDMI USB Connector
The 690-W19-260-011 is a 19-pin HDMI Type A male waterproof connector featuring an E-SEAL design, suitable for high-reliability multimedia and industrial applications. It supports asynchronous and isochronous data transfer methods, ensuring versatile performance. The connector has a secure bayonet locking system to maintain safe mating under severe vibration or shock. Made with a black UL94V-0 thermoplastic insulator, a nickel-plated steel shell, and silicone O-rings for excellent waterproofing. It offers communication speeds of 1.2 Mbps or 480 Mbps, complying with USB 1.0 standards for durable and reliable connectivity.
EDAC 690W19260011 Waterproof HDMI USB Connector Specifications:
- Insulator Material: Thermoplastic, UL 94V-0 Rated, Black color
- Shell Material: Nickel Plated Steel
- Seal Material: Silicone O-Rings, Silicone Rubber Seals
- Contact Material: Copper Alloy
- Contact Plating: Gold Flash over Nickel
- Contact Current Rating: 4A per contact
- Contact Resistance: Max 50 Milliohms
- Insulation Resistance: Minimum 100 Megohms
- Operating Temperature: -25°C to +85°C
- Degree of Protection: IP67 as per IEC 60529
- Number of Contacts: 19 for HDMI Type A, 4 for USB Type A, 5 for Micro/ Mini USB
- Speed Compatibility: 1.2 Mbps or 480 Mbps
- Mating System: Bayonet locking for vibration resistance
- Color: Black
- Standards: USB 1.0 (USB 2.0 upon request)
- Compatible with all Windows versions
Buy the Buy Edac Waterproof HDMI and USB Connectors Part Number 690W19260011 Online
Experience reliable, waterproof connectivity with our waterproof HDMI and USB connectors. Built with high-quality materials including UL 94V-0 thermoplastic insulators, nickel-plated steel shells, and silicone O-rings for enhanced waterproofing. These connectors feature secure bayonet locking systems to ensure safe mating under severe vibration or shock conditions, making them ideal for industrial and multimedia applications. Supporting speeds of up to 1.2 Mbps or 480 Mbps, they comply with USB 1.0 standards and are suitable for all Windows systems, offering durability and long-lasting performance.
Get Edac waterproof HDMI and USB connectors today—designed for high durability and secure connections in rugged environments.
Frequently Asked Questions
Where can I buy EDAC 690W19260011?
You can click on the BUY or RFQ button to purchase 690W19260011 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 690W19260011?
You can download the 690W19260011 datasheet or visit the EDAC website for support.
Who is the manufacturer of 690W19260011?
EDAC
