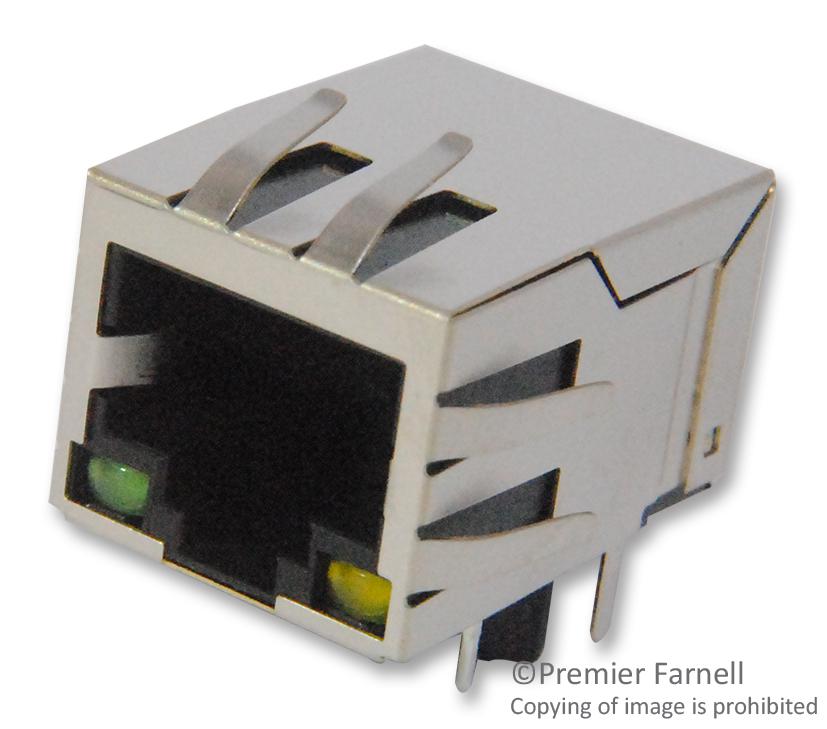

EDAC A63113331P431 Ethernet Magnetic Jack
The RJ45 magnetic jack series A6X offers reliable gigabit and fast Ethernet connectivity with integrated magnetics for signal integrity and DC isolation. Designed for telecommunications and data applications, these modules support 10/100 and 1000 Base T standards, ensuring full IEEE 802.3 compliance. Their integrated design reduces component inventory and process costs, while spring fingers on shells provide advanced EMI/RFI suppression. Available with LED indicators, tab-up or tab-down options, and modular configurations, these shielded connectors in thermoplastic housings are RoHS compliant and designed for ease of installation and durability.
EDAC A63113331P431 Ethernet Magnetic Jack Specifications:
- Housing Material: Thermoplastic, UL94V-0
- Contact Material: Copper Alloy
- Contact Plating: Gold on contact area, Tin on tails with Nickel underplating
- Shield Material: Copper Alloy with Nickel Plating
- Operating Temperature: -40°C to +85°C
- Wave Soldering Temperature: 260°C +5°C, 5~10 seconds
- Standards: IEEE 802.3, Fully compliant with 10/100/1000 Base T
- Connector Options: Single or stacked multiport, tab-up or tab-down
- LED Indicators: Available for port status
- RoHS Compliant: Yes
- Available as Shielded or No Shield configurations with EMI fingers
- Suitable for applications in telecommunications, broadcast, and data products
- Connector Types: Right angle, vertical, SMT, panel mount, with various LED color options
- Power Over Ethernet (PoE) support available
- Storage Temperature Range: -40°C to +85°C
Buy the EDAC A6X – Reliable RJ45 Magnetic Jack for Industrial Applications
Secure your network connections with the reliable EDAC Ethernet magnetic jacks from series A6X. Designed for high performance, these connectors support 10/100 and 1000 Base T standards, providing full IEEE 802.3 compliance. Their integrated magnetics ensure signal integrity and DC isolation, while EMI/RFI suppression features safeguard data quality in demanding environments. Available in various configurations, with LED indicators for easy port monitoring, they are ideal for telecommunications, broadcast, and industrial data applications. Buy online today for dependable networking solutions that meet industry standards.
Order your EDAC Series A6X Ethernet magnetic jack today and ensure robust, high-performance network connections for industrial data and telecom projects.
Frequently Asked Questions
Where can I buy EDAC A63113331P431?
You can click on the BUY or RFQ button to purchase A63113331P431 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part A63113331P431?
You can download the A63113331P431 datasheet or visit the EDAC website for support.
Who is the manufacturer of A63113331P431?
EDAC
