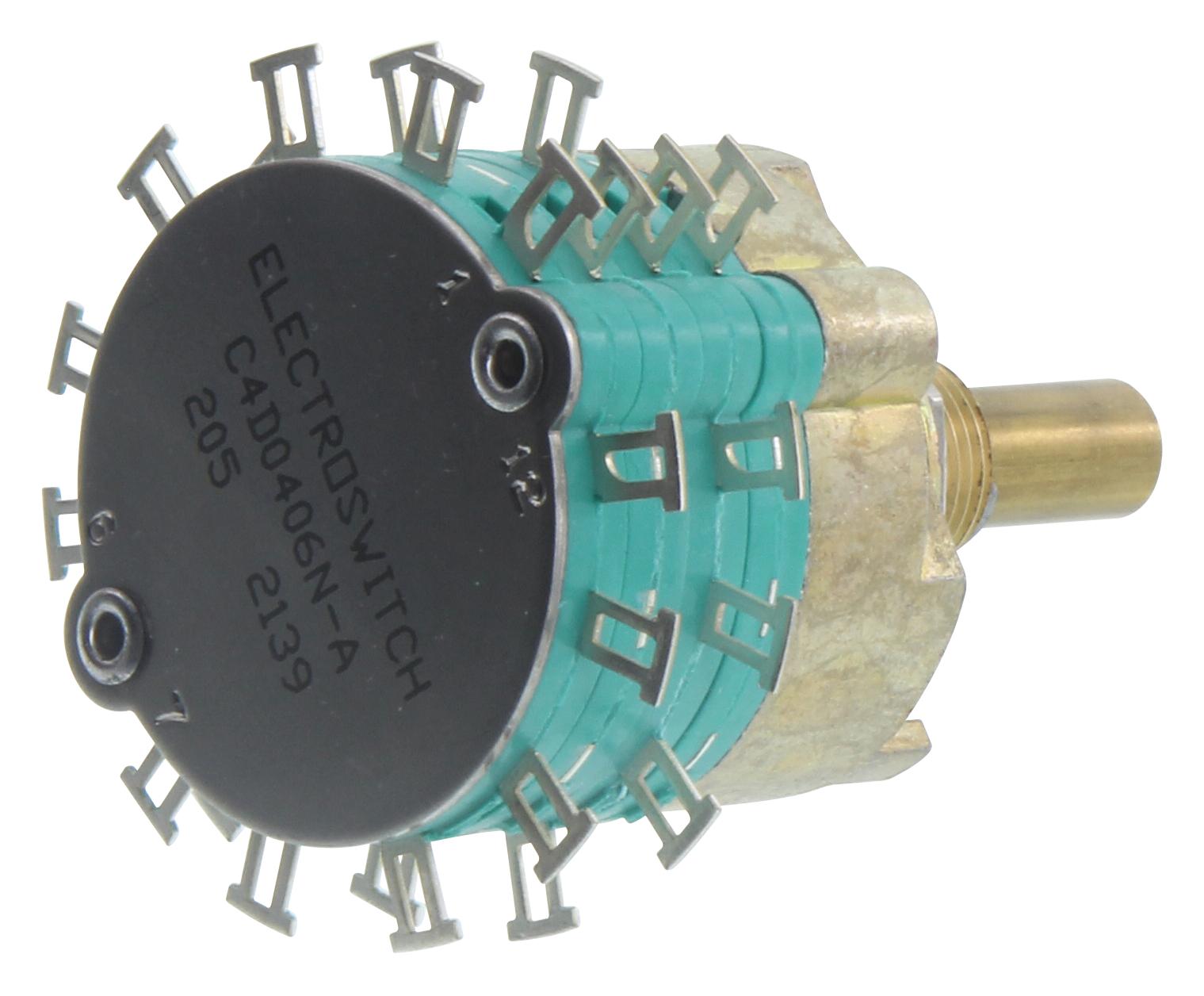

ELECTROSWITCH C4D0406NA Rotary Switch
The C4D0406N-A is a four-pole, six-throw rotary switch with diallyl phthalate insulation, brass contacts with silver plating, and a fully enclosed design that safeguards against dirt and moisture. This high-quality switch includes mounting hardware like a nut and lockwasher for secure installation. Designed for industrial applications, it features a 30° index angle, optional adjustable stops, and a robust construction to ensure reliable operation over 25,000 cycles. Its IP67 rating guarantees resistance to environmental elements, making it ideal for demanding environments.
ELECTROSWITCH C4D0406NA Rotary Switch Specifications:
- Electrical: 0.5 amp @ 28 VDC, 0.3 amp @ 125 VAC, 15 amps current carrying capacity, dielectric strength of 1,000 VAC, contact resistance of 3 millichms, insulation resistance over 10,000 megohms.
- Mechanical: All parts utilize non-corrosive materials, brass terminals with silver plating, index life minimum 25,000 cycles, standard 30° index angle with options for adjustable stops and various angles, stop strength at least 15 in. lbs.
- Materials and finishes: Non-corrosive construction, mounting nut and lockwasher included, diallyl phthalate insulation, IP67-rated fully enclosed design for dust and moisture resistance.
- Mounting and dimensions: Standard deck thickness approximately 0.016 inches, threaded terminal options, surface mounting, standard style includes 4 poles, 6 throws, with optional configurations available.
Buy the Electroswitch Series C4 Rotary Switch: C4D0406NA
Purchase the Electroswitch Series C4 rotary switch online today for high durability and reliable switching performance. Featuring a fully enclosed design rated IP67, it provides excellent protection against dust and moisture, making it ideal for industrial environments. Its robust construction supports over 25,000 operation cycles, ensuring long-lasting service. With brass contacts, silver plating, and a diallyl phthalate insulator, this switch offers superb electrical characteristics and mechanical resilience. Secure mounting hardware included, ready for fast installation and dependable operation in demanding settings.
Order your Electroswitch Series C4 rotary switch today and ensure reliable performance for demanding industrial applications with enhanced environmental protection.
Frequently Asked Questions
Where can I buy ELECTROSWITCH C4D0406NA?
You can click on the BUY or RFQ button to purchase C4D0406NA from an authorized ELECTROSWITCH distributor.
How do I troubleshoot issues or seek technical support for part C4D0406NA?
You can download the C4D0406NA datasheet or visit the ELECTROSWITCH website for support.
Who is the manufacturer of C4D0406NA?
ELECTROSWITCH
