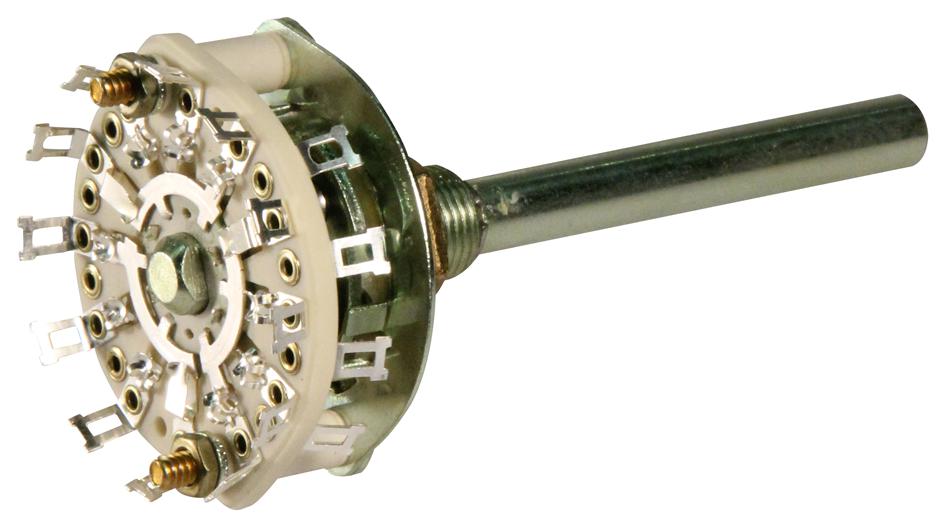

ELECTROSWITCH D4C0503N Rotary Switch
The D4C0503N rotary switch is a versatile 5-pole, 3-throw device with options for glass epoxy, ceramic, or diallyl phthalate insulation. Featuring brass parts with silver plating, it provides reliable electrical connections and durability. This switch has a crisp 30° index with adjustable stops, designed for economical, versatile use in industrial applications. It includes mounting hardware such as a nut and lockwasher, making installation straightforward. Its high-quality mechanism ensures smooth operation and long cycle life, suitable for controlling resistive loads up to 9 amps at various voltages.
ELECTROSWITCH D4C0503N Rotary Switch Specifications:
- Number of Poles: 5
- Number of Positions: 3
- Index Angle: 30°
- Current Rating: 9 amps
- Voltage Rating: 28 VDC / 115 VAC
- Contact Resistance: 3.5 milliohms (initial)
- Dielectric Strength: 1,500 VAC
- Materials: Brass with silver plating, glass epoxy, ceramic or diallyl phthalate insulation
- Cycle Life: Minimum 25,000 cycles
- Hardware: Mounting nut and lockwasher included
- Mounting: Panel mount with 3/8-32 threaded surface
- Operating Temperature: Not specified
- Insulation Resistance: Glass epoxy >750,000 megohms, ceramic >1,000,000 megohms, diallyl >900,000 megohms
- Index Mechanism: Single-ball, hill and valley
- Stop Options: Adjustable standard with fixed or continuous stops
Buy the Electroswitch Series D4 Rotary Switch: D4C0503N
Enhance your control systems with the durable and versatile Rotary Switch from the D4 series. Designed with high-quality materials and adjustable stops, it offers reliable operation for resistive loads up to 9 amps. Easy to install with included hardware, this switch features a crisp 30° index and is suitable for industrial automation. Trust in its long cycle life and precise switching to improve your equipment’s performance. Buy online now for fast delivery and dependable control solutions for your projects.
Order your Electroswitch Series D4C0503N today and give your industrial control projects the dependable quality they deserve with reliable rotary switching performance.
Frequently Asked Questions
Where can I buy ELECTROSWITCH D4C0503N?
You can click on the BUY or RFQ button to purchase D4C0503N from an authorized ELECTROSWITCH distributor.
How do I troubleshoot issues or seek technical support for part D4C0503N?
You can download the D4C0503N datasheet or visit the ELECTROSWITCH website for support.
Who is the manufacturer of D4C0503N?
ELECTROSWITCH
