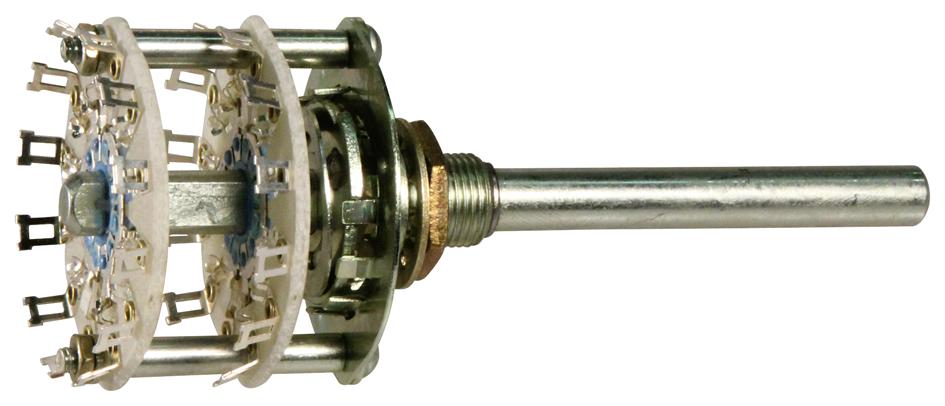

ELECTROSWITCH D4G0405N Rotary Switch
The D4G0405N rotary switch is an economical, versatile component featuring a four-pole, five-throw (4P5T) configuration with 30° indexing and adjustable stops. Designed with glass epoxy, ceramic, or diallyl phthalate insulation, it incorporates brass clips and rotors with silver plating for durability. This switch offers a high current capacity of 9 amps and a dielectric strength of 1,500 VAC, suitable for industrial controls. Its robust construction ensures reliable operation, easy mounting with included hardware, and adaptability for various switching needs.
ELECTROSWITCH D4G0405N Rotary Switch Specifications:
- Configuration: 4P5T (four poles, five throws)
- Indexing: 30° with adjustable stops
- Number of positions: up to 5
- Insulation: Glass epoxy, ceramic, diallyl phthalate
- Contact Material: Brass with silver plating
- Current Capacity: 9 amps
- Dielectric Strength: 1,500 VAC
- Contact Resistance: Average 3.5 milliohms
- Insulation Resistance: >750,000 megohms (glass epoxy), >1,000,000 megohms (ceramic)
- Hardware: Mounting nut and lockwasher included
- Mechanical life: Minimum 25,000 cycles
- Operating torque: Low practical torque for smooth operation
- Mounting: Threaded 3/8-32 with mounting surface
Buy the Electroswitch Series Rotary Switch: D4G0405N
Purchase the Electroswitch D4G0405N rotary switch online today. This four-pole, five-throw switch features 30° indexing, durable brass contacts, and ceramic or epoxy insulation. It offers a 9 amp current capacity, dielectric strength of 1,500 VAC, and a mechanical life of over 25,000 cycles, making it ideal for industrial control panels, machinery, and automation systems. Easy to install with included hardware, this reliable switch ensures precise switching and long-term performance in various demanding environments.
Order your Electroswitch Series rotary switch D4G0405N today and ensure reliable, adjustable switching with high current capacity for demanding industrial projects.
Frequently Asked Questions
Where can I buy ELECTROSWITCH D4G0405N?
You can click on the BUY or RFQ button to purchase D4G0405N from an authorized ELECTROSWITCH distributor.
How do I troubleshoot issues or seek technical support for part D4G0405N?
You can download the D4G0405N datasheet or visit the ELECTROSWITCH website for support.
Who is the manufacturer of D4G0405N?
ELECTROSWITCH
