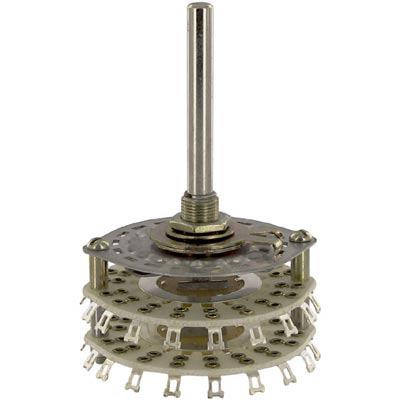

ELECTROSWITCH D8G0317N rotary switch
The D8 Series switches are heavy duty, 18 position, 20° index, glass epoxy insulation rotary switches with brass clips and rotors. They support resistive loads up to 2.25 amps at 28 VDC and 1.0 amp at 115 VAC. Constructed with non-corrosive materials and glass epoxy insulation, these switches feature dual-ball hill and valley indexing for positive detent and a mechanical lifetime of at least 25,000 cycles. They are ideal for industrial control applications requiring reliable, durable switching with adjustable stops and optional configurations.
ELECTROSWITCH D8G0317N rotary switch Specifications:
- Electrical Rating: 2.25 amps at 28 VDC, 1.0 amp at 115 VAC
- Current Carrying Capacity: 9 amps
- Materials and Finishes: Brass with silver plating, glass epoxy insulation
- Dielectric Strength: 1,000 VAC
- Insulation Resistance: Over 750,000 megaohms
- Contact Resistance: Average initial 5 milliohms
- Index Life: Minimum 25,000 cycles
- Index Angle: 20° positive
- Hardware: Mounting nut and lockwasher included
- Index Stops: Adjustable, fixed or continuous options
- Stop Strength: Minimum 25 in. lbs.
- Mounting: Standard 18-position configuration with optional shaft and bushing configurations
- Dimensions: Not specified, typical for rotary switches with glass epoxy construction
Buy the Buy Electro Switch D8G0317N Part Number D8G0317N Online
Purchase the Electro Switch D8G0317N rotary switch online today and benefit from its heavy-duty construction and precise 20° indexing. Designed with durable brass contacts and glass epoxy insulation, this 18-position switch features adjustable stops, corrosion resistance, and a mechanical life exceeding 25,000 cycles. Ideal for industrial control applications requiring reliable switching performance and long-term durability, it supports resistive loads up to 2.25 amps at 28 VDC. Simplify your procurement with online ordering for quick, secure delivery, and expert customer support.
Order your Electro Switch D8G0317N series rotary switch today and ensure reliable performance for your industrial control needs. Perfect for demanding environments, this 18-position switch with 20° indexing provides durability, adjustable stops, and corrosion-resistant construction. Make your purchase online for quick delivery and expert support—trust Electro Switch for quality and dependable operation in your automation or control systems.
Frequently Asked Questions
Where can I buy ELECTROSWITCH D8G0317N?
You can click on the BUY or RFQ button to purchase D8G0317N from an authorized ELECTROSWITCH distributor.
How do I troubleshoot issues or seek technical support for part D8G0317N?
You can download the D8G0317N datasheet or visit the ELECTROSWITCH website for support.
Who is the manufacturer of D8G0317N?
ELECTROSWITCH
