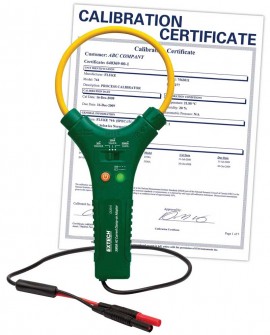

EXTECH CA3018NIST AC Clamp Meter
This clamp meter features an ISO certificate with comprehensive data and uncertainty measurements. It can measure AC current up to 3000A across three ranges. The flexible 18-inch (45.7 cm) clamp jaw easily wraps around bus bars and cable bundles. Its 7.5 mm cable diameter allows access into tight spaces and around large conductors. The twist clamp mechanism securely locks or opens the clamp. It has safety ratings of CAT III 1000V and CAT IV 600V. Compatible with most multimeters and clamp meters with standard banana plug sockets.
EXTECH CA3018NIST AC Clamp Meter Specifications:
- AC Current Ranges: 30.004A (100mV per Amp); 300.0A (10mV per Amp); 3000A (1mV per Amp)
- Max Resolution: 0.014A
- Basic Accuracy: ±3%FS (45 to 500Hz)
- Flex Cable Diameter: 0.3 inches (7.5mm)
- Flex Cable Tip Diameter: 0.51 inches (13mm)
- Dimensions Model CA3010: 11 x 4.7 x 1 inches (280 x 120 x 25mm)
- Dimensions Model CA3018: 13.8 x 5.1 x 1 inches (350 x 130 x 25mm)
- Weight Model CA3010: 602 grams (170g)
- Weight Model CA3018: 710 grams (200g)
- Safety Ratings: CAT III 1000V, CAT IV 600V
- Cable Diameter: 7.5 mm
- Clamp Jaw Diameter: 13 mm
- Battery: Not specified, standard AAA batteries for Model CA3018
- Clamp Opening/Closing: Twist to Lock or Open
Buy the Buy EXTECH AC Flex Clamp-On Adaptors Part Number CA3018NIST Online
Purchase the EXTECH AC Clamp Meter online today to benefit from its high accuracy, flexible jaw design, and safety features. Perfectly suited for electrical professionals needing reliable AC current measurements up to 3000A. Its 18-inch clamp cable easily wraps around large cables and bus bars, making it ideal for industrial and commercial applications. The twist lock mechanism ensures secure operation, and compatibility with most multimeters provides versatile use. Order now to enjoy fast delivery and professional-grade measurement solutions for dynamic work environments.
Buy EXTECH CA3018NIST now and enhance your measurement capabilities with a flexible, safe AC clamp adaptor suitable for large conductors and tight spaces.
