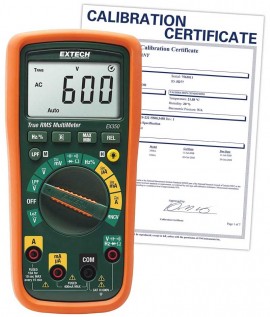

EXTECH EX350NIST digital multimeter
The Extech EX350-NIST is a digital multimeter that offers autoranging measurements of AC/DC voltage and current, resistance, frequency, capacitance, duty cycle, diode testing, and continuity. It features True RMS for accurate readings of distorted or noisy waveforms, a built-in non-contact AC voltage detector with LED indicator, low impedance mode to prevent false readings from ghost voltages, and a low pass filter for precise measurement of variable frequency drive signals. The device has a basic accuracy of 0.5%, a large backlit LCD display with 4,000 counts, and functions such as Relative Mode, Min/Max/Max-Min recording, data hold, and auto power off. It is rated for safety up to CAT III 600V, making it suitable for professional electrical testing. An ISO certificate with full data and uncertainties is included for calibration validation.
EXTECH EX350NIST digital multimeter Specifications:
- Display counts: 4000 (EX350), 6000 (EX355)
- Basic DCV Accuracy: 20.5%
- NCV Detector: Yes
- DC/AC Voltage range: 0.01mV to 600V
- DC/AC Current range: 0.1pA to 10.008A
- Resistance range: 0.49 to 40.00MΩ (EX350), 0.12 to 60.00MΩ (EX355)
- Capacitance range: 1pF to 60.00mF
- Frequency range: 0.001Hz to 10MHz
- Temperature measurement: -40 to 1832°F (-40 to 1000°C) (EX355 only)
- Duty cycle: 0.1 to 99.9%
- Diode Test: 3.2V
- Continuity: Audible alert
- Dimensions: 6.7x3.2x1.9 inches (175x81x48.5mm)
- Weight: 13.102 oz (370.9g)
Buy the Extech EX350 U–2013 Reliable Digital Multimeter for Industrial Applications
Purchase the Extech EX350 digital multimeter online and enhance your electrical troubleshooting capabilities. Featuring True RMS accuracy, non-contact voltage detection, and a large backlit LCD, this professional-grade multimeter is ideal for technicians and electricians. Its advanced functions, including Min/Max/Max-Min recordings, data hold, and auto power off, ensure reliable performance in complex testing scenarios. Rated for CAT III 600V safety, it is a versatile tool for industrial and electrical applications, delivered with calibration certificates and full data for confidence in every measurement.
Order your Extech EX350 digital multimeter today and enjoy precise measurements with True RMS functionality for professional electrical testing.
Frequently Asked Questions
Where can I buy EXTECH EX350NIST?
You can click on the BUY or RFQ button to purchase EX350NIST from an authorized EXTECH distributor.
How do I troubleshoot issues or seek technical support for part EX350NIST?
You can download the EX350NIST datasheet or visit the EXTECH website for support.
Who is the manufacturer of EX350NIST?
EXTECH
