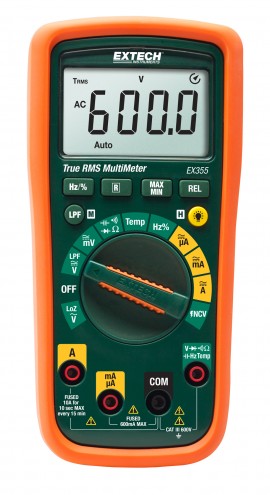

EXTECH EX355 Multimeter
The Extech EX355 is a versatile multimeter equipped with autoranging capability to measure AC/DC voltage and current, resistance, frequency, capacitance, duty cycle, diode testing, and continuity. It features temperature measurement via a Type K thermocouple input, True RMS for accurate readings on distorted waveforms, and a built-in non-contact AC voltage detector with an LED indicator for quick voltage presence detection. The device includes Low Impedance (LoZ) to prevent ghost voltages, a Low Pass Filter (LPF) for variable frequency drive signals, and offers a basic accuracy of 0.5%. It has a large, backlit LCD display with 6,000 counts, relative mode for zero adjustment, Min/Max/Max-Min recording, data hold function, auto power-off to conserve battery, and safety rated CAT III 600V.
EXTECH EX355 Multimeter Specifications:
- Display counts: 6000
- Basic DCV accuracy: 0.5%
- NCV detector: Yes
- DC/AC Voltage: 0.01mV to 600V
- DC/AC Current: 0.1pA to 10.008A
- Resistance: 0.12 to 60.00MΩ
- Capacitance: 1pF to 60.00mF
- Frequency: 0.001Hz to 10MHz
- Temperature: -40 to 1832°F (-40 to 1000°C)
- Duty Cycle: 0.1 to 99.9%
- Diode Test: 3.2V
- Continuity: Audible
- Dimensions: 6.7x3.2x1.9 inches (175x81x48.5mm)
- Weight: 13.102 oz (370 g)
Buy the EXTECH EX355 Reliable Multimeter for Industrial Applications
Purchase the Extech EX355 multimeter online today and benefit from its advanced features, including True RMS accuracy, temperature measurement, non-contact voltage detection, and data hold. This versatile device is ideal for electronics, electrical troubleshooting, and maintenance tasks, offering auto-ranging, high display counts, and safety rated CAT III 600V. Its large, backlit LCD ensures easy readability in various working conditions. Get your reliable multimeter now and ensure precise, safe measurements for all your industrial and electronics projects.
Order your Extech Series EX355 multimeter today and equip your projects with a versatile, high-accuracy digital multimeter perfect for electrical troubleshooting and maintenance.
Frequently Asked Questions
Where can I buy EXTECH EX355?
You can click on the BUY or RFQ button to purchase EX355 from an authorized EXTECH distributor.
How do I troubleshoot issues or seek technical support for part EX355?
You can download the EX355 datasheet or visit the EXTECH website for support.
Who is the manufacturer of EX355?
EXTECH
