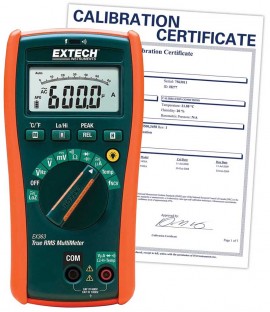

EXTECH EX363NIST Digital Multimeter
The Extech EX363-NIST is a versatile digital multimeter suitable for electrical, HVAC, and industrial applications. It offers accurate AC/DC voltage, resistance, frequency, and capacitance measurements, along with diode testing and continuity checks. The device features True RMS for noisy signals, a Type K thermocouple for temperature readings, and a microamp range for flame rod testing. Additional functions include a low impedance mode to eliminate ghost voltages, large backlit display, a fast analog bargraph, data hold with alerts, peak capture, and auto power-off. Safety-certified with CAT IV 600V, it also includes an ISO calibration certificate for traceability.
EXTECH EX363NIST Digital Multimeter Specifications:
- DCV Accuracy: 0.5%
- Voltage Range: 80 to 1000V (50-60Hz)
- AC/DC Current: mA to 10A
- Resistance: 0.12 to 40MQ
- Capacitance: 1nF to 10mF
- Frequency Range: 0.01Hz to 100kHz
- Temperature Range (Type K): -40 to 742°F (-40 to 394°C)
- Diode Test Voltage: 1.5V
- Dimensions: 6.5x3.2x1.7 inches (164x82x44 mm)
- Weight: 5.9 oz (450 g)
- NCV Detector: 160 to 1000V (50-60Hz)
- Safety Certification: CAT IV 600V
- Additional Features: non-contact voltage detection, low impedance mode, peak hold, relative mode, auto power-off
- Includes: test leads, 9V battery, holster, magnet, thermocouple probe
Buy the Buy Extech EX363NIST Digital Multimeter Online
Purchase the Extech EX363NIST digital multimeter online to experience accurate AC/DC voltage, resistance, frequency, and capacitance measurement. Features True RMS for noisy signals, a Type K thermocouple for temperature readings, and advanced functions like low impedance mode to prevent ghost voltages. The large backlit display, fast bargraph, and data hold with alerts make measurements quick and reliable. Certified with CAT IV 600V protection, it ensures safety and precision in electrical, HVAC, and industrial tasks. Buy now for professional-grade measurement anytime.
Get Extech EX363NIST today—built for precise electrical measurements with temperature and high safety standards.
Frequently Asked Questions
Where can I buy EXTECH EX363NIST?
You can click on the BUY or RFQ button to purchase EX363NIST from an authorized EXTECH distributor.
How do I troubleshoot issues or seek technical support for part EX363NIST?
You can download the EX363NIST datasheet or visit the EXTECH website for support.
Who is the manufacturer of EX363NIST?
EXTECH
