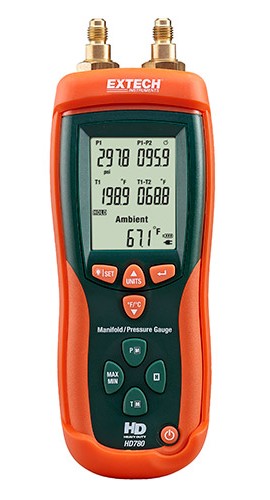

EXTECH HD780 HVAC Digital Manifold
The Extech HD780 offers a multifunctional HVAC measurement system, simultaneously measuring suction or liquid line pressure and line temperature. It calculates superheat and subcooling for air conditioning units. Featuring dual inputs for differential pressure and Type K thermocouple temperature measurements with electronic offset compensation, it displays parameters such as P1, P2, line pressures, T1, T2, their differences, and ambient temperature on a large backlit LCD. Compatible with R22 and R410A refrigerants, it includes data hold, auto power-off, heavy-duty hoses, and standard 1/4 NPT fittings, making it an essential tool for HVAC professionals.
EXTECH HD780 HVAC Digital Manifold Specifications:
- Pressure Range: psi -14 to 500psi, bar -0.96 to 34.47bar, kPa -96 to 3447kPa, inHg -28 to 999.9inHg, emHg -72 to 2585cemHg
- Temperature Range (Type K): -76°F to 999.9°F (-60°C to 537.0°C), with 0.1°F/°C resolution
- Ambient Temperature: 32.0°F to 122.0°F (0°C to 50.0°C), with 0.1°F/°C resolution
- Resolution: 0.1psi, 0.01bar, 1kPa, 0.1inHg, 4omHg, 0.1°F/°C
- Accuracy: ±1psi, ±0.1bar, ±7kPa, ±2inHg, ±5cmHg, ±0.15%rdg +1.8°F/°C
- Overload Pressure: 800psi
- Display: Large multi-line backlit LCD with readings for P1, P2, line pressures, T1, T2, differences, ambient temp, Min/Max/Avg
- Dimensions: 8.3 x 3.1 x 2 inches (212 x 78 x 51 mm)
- Weight: 11.9 oz (338 g)
- Power: 9V battery with auto power-off, electronic offset adjustment for thermocouples
- Connections: Heavy-duty hoses with 1/4 NPT male flare fittings, protective rubber holster, Type K thermocouple inputs
Buy the Extech HD780 – Reliable Digital HVAC Manifold for Industrial Applications
Enhance your HVAC service capabilities with the Extech HD780 digital manifold, featuring simultaneous pressure and temperature measurements, large backlit LCD display, and compatibility with R22 and R410A refrigerants. Its dual inputs allow precise differential pressure and thermocouple readings, supporting five pressure units for versatile applications. Durable and portable, it includes heavy-duty hoses, rubber holster, and standard fittings, making it ideal for professionals seeking accurate, reliable diagnostics for air conditioning and refrigeration systems. Order now online and improve your service quality.
Order your Extech HD780 multifunction HVAC digital manifold today and equip your HVAC projects with a dependable measurement tool that ensures accuracy and efficiency.
Frequently Asked Questions
Where can I buy EXTECH HD780?
You can click on the BUY or RFQ button to purchase HD780 from an authorized EXTECH distributor.
How do I troubleshoot issues or seek technical support for part HD780?
You can download the HD780 datasheet or visit the EXTECH website for support.
Who is the manufacturer of HD780?
EXTECH
