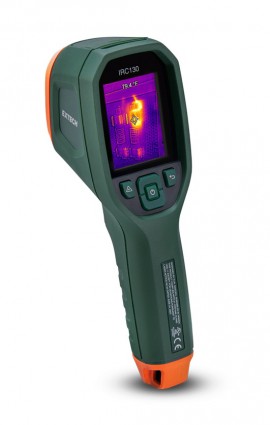

EXTECH IRC130 Thermal Imaging Camera
The Extech IRC130 is a professional thermal imaging camera featuring a large 2.4-inch TFT color display with an intuitive menu available in 22 languages. It includes an integrated true thermal imager with 80 x 60 pixels resolution and MSX technology that overlays visible light details onto thermal images for enhanced clarity. The device can measure temperatures up to 1202°F (650°C) with high accuracy and adjustable emissivity. It features a coaxial laser for precise targeting of hot or cold spots and a 30:1 distance-to-spot ratio. Capable of capturing and storing up to 50,000 thermal and visual images in JPEG format, it offers quick response times of 150 milliseconds for real-time temperature updates during continuous scanning. Additional features include a bright LED flashlight, standard ¼-inch-20 accessory mount, rugged design with IP54 dust and water resistance, drop-tested to 2 meters, an adjustable auto power-off timer, and a low battery indicator. The device is suitable for detecting hot spots, preventing electrical and mechanical failures, locating water damage, identifying missing insulation, troubleshooting automotive issues, and more.
EXTECH IRC130 Thermal Imaging Camera Specifications:
- Temperature range: -25°C to 650°C (-13°F to 1202°F)
- Image storage capacity: 50,000 JPEG images with metadata
- Emissivity: 0.10 to 0.99, adjustable with 3 presets
- Response time: 150 ms
- IR Resolution: 80 x 60 (4800 pixels)
- Digital Camera Resolution: 2 MP
- Thermal Sensitivity: <70 mK
- Field of View: 51°x66° (H x W)
- Focus: Fixed
- Minimum focus distance: 0.3 m
- Distance to target ratio: 30:1
- Display: 2.4-inch TFT, resolution 320 x 240 pixels, portrait orientation
- Display angle: 80°
- Image modes: Visual and MSX (thermal + visual overlay)
- Color palettes: Iron, Rainbow, White-hot, Black-hot, Arctic, Lava
- Power: Internal rechargeable 3.6 V Lithium-ion battery
- Protection: IP54 rated, dust and water resistant
- Drop test: 2 meters
- Additional features: Coaxial laser targeting, auto power-off timer, USB transfer, accessory mount UNC 1/4"-20, dimensions 8.3x2.5x3.2 inches, weight 13.9 oz.
Buy the Extech Series Thermal Imaging Camera: IRC130
Purchase the Extech IRC130 thermal imaging camera online today to leverage advanced MSX technology, high-resolution thermal and visual images, and a rugged, IP54-rated design. This versatile device captures up to 50,000 JPEG images, features a 2.4-inch color display with intuitive menus in 22 languages, and offers precise temperature measurement up to 1202°F (650°C). Equipped with a coaxial laser, auto power-off, and rapid response time, it’s ideal for inspections, troubleshooting, and preventive maintenance across electrical, mechanical, and automotive applications. Get yours now for reliable, high-performance thermal imaging.
Buy Extech IRC130 thermal imager now and experience unmatched reliability, advanced MSX technology, and extensive image storage capacity.
