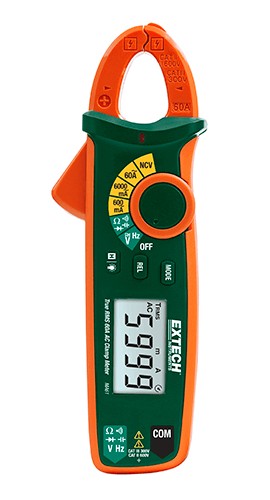

EXTECH MA61 Clamp Meter
The Extech MA61 multimeter provides true RMS measurements for precise readings of noisy and distorted waveforms. Features include AC current, AC/DC voltage, resistance, capacitance, frequency, diode, and continuity testing. It incorporates a built-in non-contact voltage detector with LED indicator and variable frequency control with low pass filter for accurate variable frequency drive signal diagnosis. The device’s compact 0.7-inch jaw, 6000mA current range, backlit LCD, data hold, low battery indicator, auto power off, and overload protection make it ideal for automotive and HVAC applications. Safety rated CAT II 600V and CAT III 300V.
EXTECH MA61 Clamp Meter Specifications:
- AC Current: 600mA, 6000mA, 60A (0.1mA resolution)
- DC Current: 6000mA, 60A (1mA resolution)
- AC/DC Voltage: 60V to 600V (mV), resolution 0.1mV
- Resistance: 600Ω to 60MΩ (0.1Ω)
- Capacitance: 6.2nF to 62mF (1pF)
- Frequency Range: 10Hz to 60kHz (0.001Hz)
- Dimensions: 6.9 x 2.4 x 1.3 inches (175 x 60 x 33.5 mm)
- Weight: 6 oz (170 g)
- Display: 6000 count backlit LCD
- Safety Ratings: CAT II-600V, CAT III-300V
- Jaw Size: 0.7 inch (17mm)
- Overload Protection: Full range
- Features: Data hold, low battery indicator, auto power off, non-contact voltage detection
Buy the Extech Series MA61 AC/DC Current Clamp Meter: MA61
Purchase the Extech MA61 clamp meter online for precise true RMS measurements, non-contact voltage detection, and VFC mode. Compact and easy to use, it’s ideal for automotive, HVAC, and electrical work. The device features a backlit LCD display, overload protection, and safety ratings up to 600V. Its tiny 0.7-inch jaw allows measurements in tight spaces, making it perfect for professional technicians. Enjoy quick delivery and reliable performance by buying this versatile multimeter online today.
Get Extech MA61 today—built for accurate measurements, safety, and reliable automotive and HVAC diagnostics.
Frequently Asked Questions
Where can I buy EXTECH MA61?
You can click on the BUY or RFQ button to purchase MA61 from an authorized EXTECH distributor.
How do I troubleshoot issues or seek technical support for part MA61?
You can download the MA61 datasheet or visit the EXTECH website for support.
Who is the manufacturer of MA61?
EXTECH
