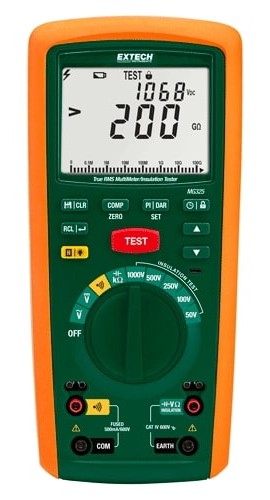

EXTECH MG325NIST Insulation Resistance Tester
The Extech MG325-NIST is a versatile insulation resistance tester and true RMS multimeter with ISO certification, designed for electrical testing. It measures insulation resistance up to 5.5 GΩ with auto-ranging, featuring test voltages of 250 V, 500 V, and 1000 V. The device also measures AC voltage from 30 to 600 V, with additional capabilities such as polarization index, dielectric absorption ratio, and low resistance testing with a zero function. Equipped with a large backlit LCD, continuity buzzer, auto-discharge, overload and high voltage indicators, it ensures reliable testing in electrical maintenance and troubleshooting.
EXTECH MG325NIST Insulation Resistance Tester Specifications:
- Insulation Resistance: up to 5.5 GΩ with auto-ranging, test voltages of 250 V, 500 V, 1000 V, resolution 0.001 MΩ, accuracy ±(3%+3d)
- AC/DC Voltage: 30 to 600 V, resolution 0.01 V, accuracy ±(1.5%+50), ±(2.96%+3d)
- Leakage Current: up to 2000 μA, resolution 0.1 μA, accuracy ±(10%+3d)
- Resistance: 10 MΩ, resolution 0.01 kΩ, accuracy ±(3%+3d)
- Low Resistance: up to 1000 Ω, resolution 0.012 Ω, accuracy ±(1.5%+5d)
- Capacitance: up to 500 μF, resolution 0.1 nF, accuracy ±(5%+5d)
- Frequency: up to 4 kHz, resolution 0.1 Hz, accuracy ±(0.1%+3d)
- Dimensions: 8.9 x 4.1 x 2.3 inches (225 x 103 x 59mm), Weight: 1.5 lbs (0.7kg)
Buy the Extech Series MG325 Insulation Tester: MG325NIST
Purchase the Extech Series MG325NIST insulation resistance tester online today to enhance your electrical testing accuracy. This versatile device combines high insulation resistance measurement up to 5.5 GΩ, auto-ranging capabilities, and features like polarization index, dielectric absorption ratio, low resistance, and continuity testing. Its large backlit LCD display provides clear readings, while auto-discharge and overload indicators ensure safe operation. Ideal for electrical professionals, it offers dependable performance in maintenance, troubleshooting, and safety checks. Buy now and upgrade your electrical testing toolkit with this reliable, comprehensive instrument.
Order your Extech Series MG325NIST insulation tester today and ensure precise electrical measurements with reliable safety features.
Frequently Asked Questions
Where can I buy EXTECH MG325NIST?
You can click on the BUY or RFQ button to purchase MG325NIST from an authorized EXTECH distributor.
How do I troubleshoot issues or seek technical support for part MG325NIST?
You can download the MG325NIST datasheet or visit the EXTECH website for support.
Who is the manufacturer of MG325NIST?
EXTECH
