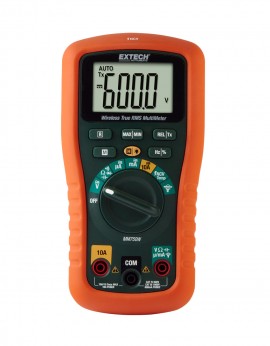

EXTECH MM750WNIST Digital Multimeter
The Extech MM750W-NIST is a digital multimeter featuring wireless Bluetooth® datalogging capabilities, allowing remote measurement viewing on iOS® and Android™ devices via the free ExView® W-Series app. It offers true RMS AC measurements, a Type K temperature function, a 6000-count backlit LCD display, and high accuracy with ±0.6% DC voltage precision. Additional features include a built-in non-contact AC voltage detector, AC μA measurement for HVAC/R flame rod currents, external clamp adapter input (with a maximum of 600 A AC/DC), and MIN/MAX/DIF functions for recording peak and lowest readings and their differences. The device supports capacitance relative zero and offset adjustments, data hold, auto power off with disable option, and features safety categories CAT IV-600V and CAT III-1000V. Bluetooth datalogging allows recording over 15,000 readings, real-time wireless data streaming, programmable alarms, color-coded reports, data export to Excel, and snapshot capturing with measurement details. Suitable for electrical applications, this multimeter provides comprehensive measurement and logging features with NIST certification and full data uncertainties.
EXTECH MM750WNIST Digital Multimeter Specifications:
- AC Voltage Range: 0.1mV to 1000V DC Voltage Range: 0.1mV to 1000V
- AC Current Range: 0.1pA to 10.00A DC Current Range: 0.1pA to 10.00A
- Resistance: 0.1 to 60.00MQ
- Capacitance: 9.999nF to 99.99mF
- Frequency: 9.999Hz to 55.00MHz
- Temperature (Type K): -40 to 1832°F (-40 to 1000°C)
- Datalogging: 15,360 data points with Bluetooth module
- Display: 6000 count backlit LCD
- Dimensions: 7.4 x 3.8 x 2.2 inches (188 x 96 x 56 mm), Weight: 14.6 oz (415 g)
- Safety Categories: CAT IV-600V, CAT III-1000V
- Additional features include non-contact AC voltage detection, external clamp input for 600A, MIN/MAX/DIF, data hold, auto power off, and programmable alarms.
Buy the Buy Extech MM750W-NIST Digital Multimeter Part Number MM750WNIST Online
Purchase the Extech MM750W-NIST online to access a versatile digital multimeter with wireless Bluetooth datalogging, true RMS AC measurements, Type K temperature, and high accuracy. Its compact design includes a backlit LCD, non-contact voltage detection, clamp input for high current measurement, and extensive datalogging capacity of over 15,000 readings. Compatible with iOS and Android devices via free apps, it enables remote measurement viewing, data exporting, snapshot capturing, and programmable alarms. A professional-grade tool perfect for electrical diagnostics, HVAC, and fieldwork, all backed with NIST calibration.
Order your Extech SeriesMM750W-NIST digital multimeter today and equip your electrical projects with precise, wireless measurement capabilities.
