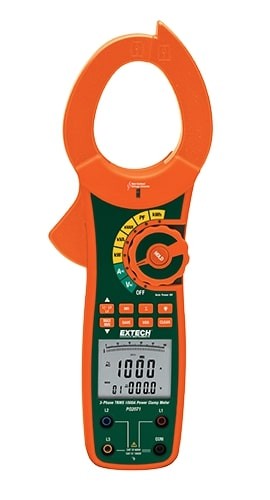

EXTECH PQ2071NIST Power Clamp Meter
The Extech PQ2071-NIST is a versatile measuring device functioning as a true RMS clamp meter, power meter, multimeter, and AC voltage detector. It measures AC current, voltage, frequency, and various power parameters including true power, apparent power, reactive power, and active power. It supports measurement of both single-phase and balanced three-phase systems, providing readings for true power (kW), apparent power (kVA), reactive power (kVAR), and energy consumption (kWh), along with power factor and phase angle. The meter features a 2.16-inch (55 mm) clamp jaw opening, a large dual backlit LCD display with a bargraph, and a built-in non-contact voltage detector with LED alerts. It allows manual storage and recall of up to 99 data sets, and includes functions such as data hold, maximum/minimum recording, and auto power-off. The device can connect via USB to a PC for data logging, utilizing the included software. The product comes with an ISO certificate indicating full data and uncertainty details.
EXTECH PQ2071NIST Power Clamp Meter Specifications:
- True Power Range: 750kW, Resolution: 10W, Accuracy: ±3%
- Apparent Power: 750kVA, Resolution: 10kVA, Accuracy: ±3%
- Reactive Power: 750kVAR, Resolution: 10VAR, Accuracy: ±4%
- Active Power: 9999kWh, Resolution: 0.001 kWh, Accuracy: ±3%
- Power Factor Range: 0.03 to 1, Resolution: 0.001, Accuracy: ±0.02
- Phase Angle: -180 to 180°, Resolution: 1°, Accuracy: ±2°
- AC Current: up to 100A, Resolution: 100mA, Accuracy: ±2%
- AC Voltage (TRMS): up to 750V, Resolution: 1V, Accuracy: ±1.2%
- Frequency: 50Hz to 200Hz
- Dimensions: 11.5 x 3.75 x 1.5 inches (292 x 95 x 38 mm), Weight: 18.4 oz (522 g)
Buy the Buy Extech PQ2071-NIST Power Clamp Meter Part Number PQ2071NIST Online
Order the Extech PQ2071-NIST Power Clamp Meter online today for accurate measurement of AC current, voltage, and power parameters. Equipped with a large backlit LCD display, a 2.16-inch clamp jaw opening, and USB data logging, this versatile device simplifies power quality analysis. Its multifunctionality includes True RMS measurement, non-contact voltage detection, and storage for up to 99 data sets, making it ideal for electrical troubleshooting, energy audits, and maintenance. Purchase now for reliable, professional-grade power measurement.
Get Extech PQ2071-NIST today—built for precise power measurement and long-lasting durability.
