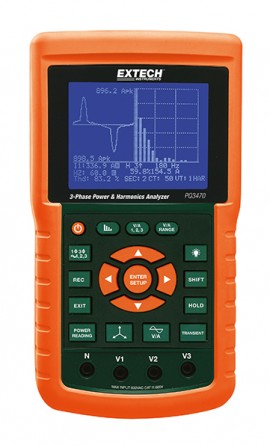

EXTECH PQ3470 Power and Harmonics Analyzer
The Extech PQ3470 power and harmonics analyzer provides comprehensive electrical system analysis with a sun-readable graphical LCD display. It supports over 35 parameters including harmonic analysis up to the 50th order, total harmonic distortion, and system unbalance ratios. The device features adjustable current and voltage transformer ratios, waveform and transient event capture, real-time phase diagrams, and extensive data logging capacity with an SD card. Its rugged construction and wide sampling range make it suitable for high power applications, while optional current clamps enhance measurement accuracy. Ideal for electrical engineers and maintenance professionals, it improves system diagnostics, troubleshooting, and energy management in various power distribution environments.
EXTECH PQ3470 Power and Harmonics Analyzer Specifications:
- Dimensions: 8.86 x 4.92 x 2.52 inches (225 x 125 x 64 mm)
- Weight: 2.21 pounds (1010 grams)
- Display: Backlit graphical LCD
- Power Supply: 8 AA batteries
- Sampling Rate: 2 seconds to 2 hours
- Voltage Range: 45Hz to 65Hz
- Current Clamp Options: 200A, 1200A, 3000A flexible clamps (sold separately)
- Harmonics Analysis: Up to 50th order
- Total Harmonic Distortion: Calculated and displayed
- Waveform Display: Peak values with waveform capture
- Unbalance Ratios: Voltage and current (VUR, AUR)
- Data Storage: Up to 30,000 readings on SD card, compatible with Excel
- Transformers: Adjustable CT (1 to 600), PT (1 to 1000)
- Power Measurement: Active, Reactive, Apparent, Power Factor
- Accuracy: ±2% for most measurements
- Features: Transient event capture, programmable thresholds, phase diagrams
