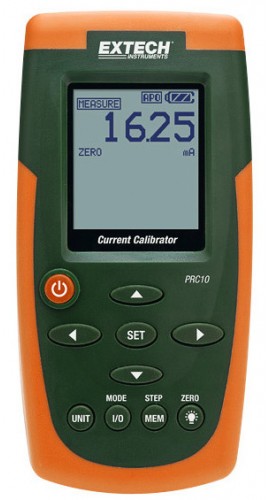

EXTECH PRC10NIST Process Calibration Device
The Extech PRC10-NIST is a versatile calibration device designed for testing and adjusting 0 to 24 mA current signals. It features a 24V DC power supply suitable for two-wire current loops, multiple user-defined calibration presets, and a large, backlit dot-matrix LCD display. The device includes standard banana input/output ports, a large battery capacity for extended operation, and an external power adapter for continuous use. Suitable for process control, plant maintenance, and calibration of transmitters, transducers, indicators, sensors, instrumentation, robotic systems, and thermocouples.
EXTECH PRC10NIST Process Calibration Device Specifications:
- Range: Source Output 0 to 24mA for loads up to 1000 ohms (-25% to 125%), Output 0 to 20V (PRC15 only).
- Measure: 0 to 50mA current signal (-25 to 230%), 0 to 19.99V (PRC15 only).
- Power/Measure: Provides 24V DC power to loop and measures current (PRC10 only).
- Display Resolution: 0 to 19.99mA at 0.01mA, 0 to 24.0mA at 0.1mA, 0 to 1999mV at 10mV, 0 to 20.00V at 10mV.
- Accuracy: 0.01% +1 digit.
- Dimensions: 6.3 inches x 3.2 inches x 1.7 inches.
- Weight: 8.202 ounces (excluding batteries).
- Includes test leads, alligator clips, universal AC adapter, six AA 1.5V batteries, and carrying case.
Buy the Buy Extech PRC10-NIST Part Number PRC10NIST Online
Purchase the Extech PRC10-NIST calibration instrument online today to ensure precise testing and adjustment of 0 to 24mA signals. Featuring a large backlit LCD, standard banana ports, and multiple calibration presets, this device is ideal for process control, plant maintenance, and instrumentation calibration. With a 24V DC power supply, extended battery life, and an external power adapter for continuous work, it provides reliable performance for technicians and engineers seeking accuracy, durability, and versatility in calibration tasks.
Get Extech PRC10-NIST today—built for precise process calibration and long-lasting durability.
