EXTECH PRC15NIST Process Calibration Device

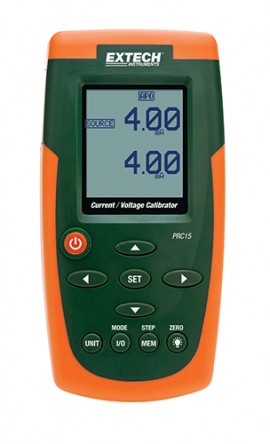

The Extech PRC15-NIST is a portable calibration device designed for precise testing and calibration of electronic components such as transmitters, sensors, indicators, and process controllers. Featuring a 0 to 24mA current output with a -25% to 125% range, it also provides a 0 to 20V DC calibration source for comprehensive testing. The compact design includes a large backlit LCD display, standard banana I/O ports, and a substantial battery bank for extended use. It supports external power for continuous operation, making it ideal for maintenance, calibration, and troubleshooting in industrial and laboratory environments.
EXTECH PRC15NIST Process Calibration Device Specifications:
- Range: 0 to 24mA current for loads up to 1000 ohms (-25% to 125%)
- Range: 0 to 20V DC (PRC15 only)
- Measure: 0 to 50mA current signal (-25 to 230%)
- Measure: 0 to 19.99V (PRC15 only)
- Resolution: 0.01mA for 0-19.99mA, 0.1mA for 0-24mA, 10mV for 0-19.99V, 10mV for 0-20V
- Accuracy: 0.01% + 1 digit
- Power: 24V DC for loops and external adapter for continuous use
- Size: 6.3 x 3.2 x 1.7 inches (159 x 80 x 44mm)
- Weight: 8.202 oz (232g) excluding batteries
- Includes test leads, alligator clips, and a hard case
Buy the Buy Extech PRC15-NIST Portable Calibration Device Online
Purchase the Extech PRC15-NIST portable calibration device online today and ensure highly accurate testing for electronic components, sensors, transmitters, and process controllers. With features like a 0-24mA current output, 0-20V DC calibration source, adjustable presets, and a large backlit LCD, this device is essential for industrial maintenance, calibration, and troubleshooting. Its robust design with a large battery bank and external power option guarantees extended use and consistent performance, making it the perfect choice for technicians and engineers seeking dependable calibration solutions.
Buy Extech PRC15-NIST calibration device now and experience unmatched precision and reliability for process testing and calibration.
Frequently Asked Questions
Where can I buy EXTECH PRC15NIST?
You can click on the BUY or RFQ button to purchase PRC15NIST from an authorized EXTECH distributor.
How do I troubleshoot issues or seek technical support for part PRC15NIST?
You can download the PRC15NIST datasheet or visit the EXTECH website for support.
Who is the manufacturer of PRC15NIST?
EXTECH
