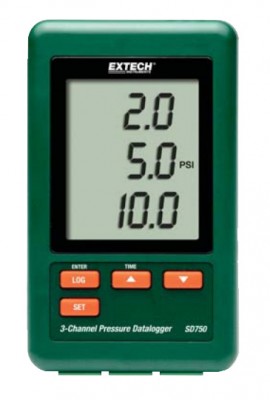

EXTECH SD750 Pressure Datalogger
The Extech SD750 is a versatile digital pressure measurement device featuring a triple LCD display that shows three pressure channels simultaneously. It supports measurements of up to 5000 psi with a 4-20mA output and input, allowing readings to be displayed in nine different units of measure. The device includes a datalogger with date and time stamping capabilities, storing readings onto an SD card in Excel® format for easy data management. Users can select from various data sampling rates ranging from 5 to 600 seconds or choose automatic mode. Note that pressure transducers are sold separately. Ideal for hydraulic, pneumatic, air compressor, and process gas system applications.
EXTECH SD750 Pressure Datalogger Specifications:
- Range: 0.002 to 30 psi / 0.02 to 30 psi / 0.2 to 300 psi depending on transducer
- Pressure units: bar, psi, kg/cm², mmHg, inHg, mH2O, inH2O, atm, kPa
- Memory: 2M data using 2G SD card
- Dimensions: 5.2 x 3.1 x 1.3 inches (182 x 80 x 32 mm)
- Weight: 7 ounces
- Display: Triple LCD showing three pressure channels simultaneously
- Sampling Rate: 5, 10, 30, 60, 120, 300, 600 seconds or automatic
- Power: Six AAA batteries, optional AC adaptor
- Compatibility: Supports optional universal pressure transducers in three ranges
- Data Output: 4-20mA input/output, SD card storage in Excel format
Buy the Extech Series SD750 Pressure Datalogger: SD750
Experience accurate and efficient pressure measurement with the Extech SD750 pressure datalogger. Featuring a triple LCD display, multiple measurement units, SD card data storage, and flexible sampling rates, it’s ideal for hydraulic, pneumatic, and industrial applications. The device supports up to 5000 psi via compatible transducers and provides comprehensive data management for troubleshooting and system monitoring. Purchase online now to improve your pressure data collection with this reliable, versatile, and easy-to-operate pressure measurement solution.
Order your Extech Series SD750 pressure datalogger today and enhance your pressure monitoring with reliable, easy-to-use data logging capabilities.
Frequently Asked Questions
Where can I buy EXTECH SD750?
You can click on the BUY or RFQ button to purchase SD750 from an authorized EXTECH distributor.
How do I troubleshoot issues or seek technical support for part SD750?
You can download the SD750 datasheet or visit the EXTECH website for support.
Who is the manufacturer of SD750?
EXTECH
