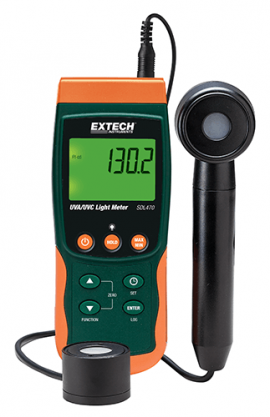

EXTECH SDL470 UV Light Meter
The Extech SDL470 is a versatile UV and temperature measurement device. It features probes for long-wave 365nm UVA UV irradiance and short-wave 254nm UVC UV irradiance, each equipped with cosine correction filters. The device includes offset adjustment for zeroing or relative measurements and has a Type K/J thermocouple input (probe sold separately) for temperature readings. It boasts a large backlit LCD display, with functions to record and recall minimum and maximum readings, data hold, and auto power-off with disable options. The built-in datalogging capability allows recording of measurements with date and time stamps onto an included SD card in Excel® format. It can store up to 99 manual readings and offers adjustable data sampling rates from 1 to 3600 seconds.
EXTECH SDL470 UV Light Meter Specifications:
- UVA Range: 2mW/cm² to 20mW/cm², resolution 0.001mW/cm², accuracy ±4% FS
- UVC Range: 2mW/cm² to 20mW/cm², resolution 0.001mW/cm², accuracy ±4% FS
- Frequency Bandwidth: 365nm (UVA); 254nm (UVC)
- Type K Temperature: -148 to 2372°F (-100 to 1300°C), resolution 0.1°F/°C, accuracy ±0.4% +1.8°F/°C
- Type J Temperature: -148 to 2192°F (-100 to 1200°C), resolution 0.1°F/°C, accuracy ±0.4% +1.8°F/°C
- Memory: Stores 99 readings on SD card, data including date and time
- Dimensions: 7.2 x 2.9 x 1.9 inches (182 x 73 x 47.5 mm), Weight: 16.2 oz (475 g)
Buy the Extech Series SDL470 UV Light Meter: SDL470
Purchase the Extech SDL470 UV Light Meter online to ensure accurate UVA and UVC irradiance measurements, temperature readings, and reliable datalogging. Its intuitive interface, adjustable sampling rates, and SD card storage make it ideal for professionals and researchers needing dependable UV diagnostics. The device's compact design, large backlit display, and versatile probes facilitate efficient UV testing in laboratories, industrial environments, and field inspections. Order now to enhance your UV measurement capability with precision and durability.
Get Extech SDL470 UV Light Meter today—built for precise UV measurements and durable testing performance.
Frequently Asked Questions
Where can I buy EXTECH SDL470?
You can click on the BUY or RFQ button to purchase SDL470 from an authorized EXTECH distributor.
How do I troubleshoot issues or seek technical support for part SDL470?
You can download the SDL470 datasheet or visit the EXTECH website for support.
Who is the manufacturer of SDL470?
EXTECH
