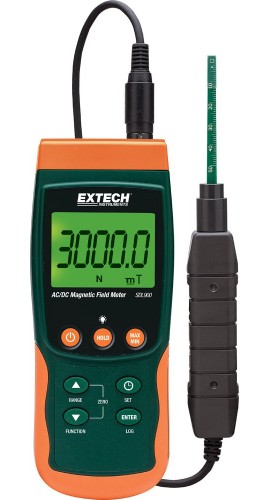

EXTECH SDL900 Magnetic Field Meter
The Extech SDL900 is an advanced AC/DC magnetic field meter and data logger featuring a uniaxial Hall effect sensor with automatic temperature compensation. It measures magnetic fields from 0.01mT to 300mT in DC mode and up to 150mT in AC mode, offering precise readings with a max resolution of 0.01mT and 0.1G. The device supports adjustable sampling rates from 1 to 3600 seconds, manually stores 99 readings, and logs data with date and time stamps onto an SD card in Excel format. Its compact design includes pole indicators, a zero button for DC, data hold, min/max functions, and auto power-off, making it ideal for industrial, electrical, research, and field applications requiring reliable magnetic measurement and data logging.
EXTECH SDL900 Magnetic Field Meter Specifications:
- Range DC milli Tesla: 300.00mT, Max Resolution: 0.01mT, Accuracy: +(5% + 10d)
- Range DC Gauss: 3000.06G, Max Resolution: 0.1G, Accuracy: +(5% + 10d)
- Range AC milli Tesla: 150.00mT, Max Resolution: 0.01mT, Accuracy: +(5% + 20d)
- Range AC Gauss: 1500.06G, Max Resolution: 0.1G, Accuracy: +(5% + 20d)
- Bandwidth: 50Hz/60Hz, Sampling Rate: 1-3600 seconds
- Number of Axis: Uniaxial, Dimensions: 7.1x2.9x1.9 inches, Weight: 10.7 oz (303g)
- Includes: Magnetic probe sensor, protective cover, SD card, universal AC adapter with multi-plugs, batteries, carrying case
Buy the Buy Extech Magnetic Field Meter Part Number SDL900 Online
Order the Extech SDL900 magnetic field meter and data logger online today. Designed with a uniaxial Hall sensor, adjustable sampling rates, SD card recording in Excel format, and pole indicators, this portable device offers precise AC/DC magnetic measurements. Its compact size, temperature compensation, and easy data export make it ideal for electrical, laboratory, industrial, and field applications. Ensure accurate, reliable magnetic field testing and data logging with this versatile instrument—purchase now for your project needs.
Get Extech SDL900 magnetic field meter today—built for precise measurement and long-lasting reliability in industrial and research environments.
Frequently Asked Questions
Where can I buy EXTECH SDL900?
You can click on the BUY or RFQ button to purchase SDL900 from an authorized EXTECH distributor.
How do I troubleshoot issues or seek technical support for part SDL900?
You can download the SDL900 datasheet or visit the EXTECH website for support.
Who is the manufacturer of SDL900?
EXTECH
