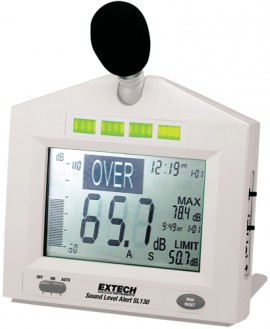

EXTECH SL130WNIST Sound Level Meter
The Extech SL130W-NIST sound level meter provides precise ambient noise measurement with versatile mounting options, including wall, desk, or tripod. It features a 0.5 inch electret condenser microphone with a 15-foot extension for remote monitoring, ensuring ease of use in various environments such as industrial sites, hospitals, and auditoriums. The device displays sound levels on a multifunction LCD, with adjustable high or low alarm limits ranging from 30 to 130 dB, activating bright LEDs visible up to 100 feet. Compliant with ANSI Type 2 and EN 60651 standards, it is ideal for monitoring noise levels and triggering relay outputs for automated alerts.
EXTECH SL130WNIST Sound Level Meter Specifications:
- Display: 4.6 x 3.125 inches multifunction LCD
- Measurement ranges: 30 to 80dB, 60 to 110dB, 80 to 130dB (0.1dB resolution)
- Microphone: 0.5-inch Electret Condenser, remote with optional extension cable
- Frequency bandwidth: 31.5Hz to 8kHz
- Frequency weighting: A and C (Programmable)
- Response time: Fast (125ms) / Slow (1s), Programmable
- Alarm output: 3.5mm mono phone plug, max 3.4mA @ 5VDC
- Minimum output voltage: 2.5VDC
- Dimensions: 8.75 x 7.1 x 1.25 inches / 22 x 18 x 3.2 mm
- Weight: 0.63 lbs / 285g
- Power: AC/DC adaptor or 8xAA batteries
- LED indicators: Red flashing and green light, visible up to 100 feet
- Compliance: ANSI Type 2 and EN 60651, OSHA standards
Buy the Buy Extech Sound Level Meter Part Number SL130WNIST Online
Purchase the Extech SL130W-NIST sound level meter online today to ensure accurate ambient noise monitoring in industrial, healthcare, educational, and entertainment environments. Its versatile mounting, bright LEDs, and remote microphone extension provide flexibility and visibility up to 100 feet, making it perfect for ensuring compliance with noise regulations and safety standards. With adjustable alarms from 30 to 130 dB, it triggers external relays for automated alerts, providing a comprehensive solution for occupational health and environmental noise assessment. Order now for fast delivery and reliable performance.
Buy Extech SL130WNIST now and experience reliable, precise ambient noise measurement with versatile mounting options and remote monitoring features.
Frequently Asked Questions
Where can I buy EXTECH SL130WNIST?
You can click on the BUY or RFQ button to purchase SL130WNIST from an authorized EXTECH distributor.
How do I troubleshoot issues or seek technical support for part SL130WNIST?
You can download the SL130WNIST datasheet or visit the EXTECH website for support.
Who is the manufacturer of SL130WNIST?
EXTECH
