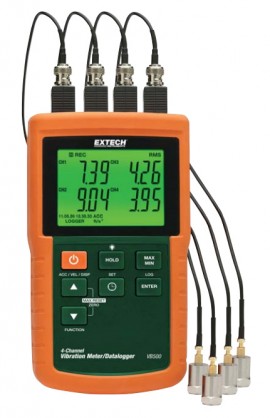

EXTECH VB500NIST Vibration Meter
The Extech VB500-NIST is a versatile 4-channel vibration meter and datalogger designed for comprehensive machinery monitoring. Its large backlit display simultaneously shows data from four channels, with selectable sampling rates from 1 to 3600 seconds. Equipped with remote sensors featuring magnetic mounts on a 39-inch cable, it measures a frequency range of 10Hz to 1kHz with a basic accuracy of ±(5% + 2 digits). It supports RMS and Peak modes, data logging with date/time stamps on an SD card, Data Hold, and Auto Power Off. Ideal for maintenance of motors, bearings, fans, pumps, and rotating machinery, ensuring operational reliability.
EXTECH VB500NIST Vibration Meter Specifications:
- Acceleration: 656 t/s², 200 m/s², 20.399 (peak)
- Velocity: 7.87 in/s, 200 mm/s, 19.99 cm/s (peak)
- Displacement: 0.078 in, 2 mm (peak-to-peak)
- Resolution: 0.1 mV/s, 0.019 in/s, 0.001 mm/s
- Basic accuracy: ±(5% + 2 digits)
- Memory capacity: 20 million data records on 2G SD card
- Dimensions: 8 x 3 x 1.5 inches (203 x 76 x 38 mm)
- Weight: 1.13 lbs (515 g)
Buy the Buy Extech Vibration Meter Part Number VB500NIST Online
Purchase the Extech VB500-NIST vibration meter and datalogger online today. Its four-channel measurement, remote sensors, and large display make it ideal for machinery maintenance, ensuring continuous operation and early fault detection. With selectable sampling rates, data logging, and wide frequency coverage, it provides comprehensive condition monitoring for motors, bearings, pumps, fans, and rotating equipment. Enjoy fast delivery, easy ordering, and professional support to keep your industrial equipment running smoothly and efficiently.
Order your Extech Series VB500NIST vibration data logger today and ensure reliable machinery operation with precise, multi-channel monitoring.
Frequently Asked Questions
Where can I buy EXTECH VB500NIST?
You can click on the BUY or RFQ button to purchase VB500NIST from an authorized EXTECH distributor.
How do I troubleshoot issues or seek technical support for part VB500NIST?
You can download the VB500NIST datasheet or visit the EXTECH website for support.
Who is the manufacturer of VB500NIST?
EXTECH
