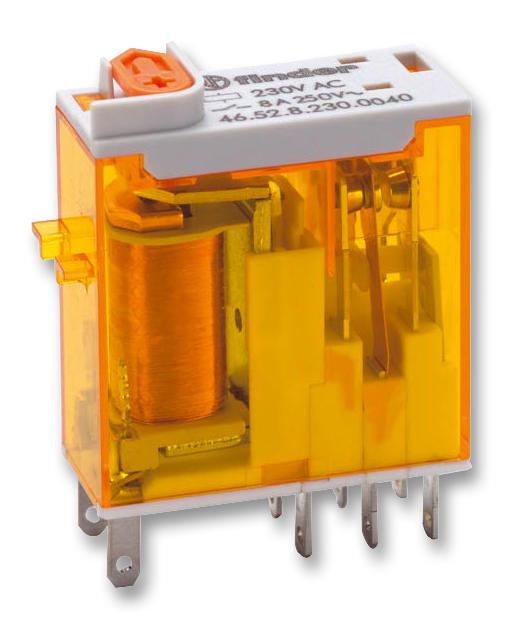

FINDER 465290240074 Industrial Control Relay
The miniature industrial relay designed for reliable switching applications in automation, shipyards, lighting, hoists, and control panels. It supports 8-16A current ratings, features screwless terminal sockets, 35 mm rail mounting, and optional modules like timers, LEDs, diodes, and varistors. Rated for AC/DC voltages up to 250V, with dielectric strength of 6 kV and protection class IP20. Suitable for complex automation systems requiring durable, compact relays with multiple mounting options and accessory modules for enhanced functionality.
FINDER 465290240074 Industrial Control Relay Specifications:
- Rated current: 8-16A
- Rated voltage: 250V AC/DC
- Dielectric strength: 6 kV between coil and contacts
- Protection category: IP20
- Ambient temperature: -25°C to +70°C
- Wire strip length: 8mm
- Max wire size: 2x (0.5...1.5) mm²
- Coil voltages: 12V, 24V, 48V, 110V, 125V, 230V, 240V AC/DC
- Coil resistance: Varies with voltage, e.g., 12V coil R=88Ω, 24V R=17.5Ω
- Mechanical life: 10^7 cycles
- Electrical life: 10^5 to 10^8 cycles depending on load
- Mounting: Screw terminal panel or 35 mm DIN rail
- Accessories include: retaining clips, marker tags, jumper links, timer modules
- Operating temperature range: -40°C to +70°C
- Contact configuration: 2CO (OPDT), 1CO (SPDT)
- Certifications: CE, UL (according to type)
Buy the Finder Series 97 Miniature Industrial Relay: 465290240074
Order the Finder Series 97 industrial control relay today online to ensure seamless automation, reliable switching up to 16A, and versatile mounting options. Equipped with accessory modules like timers, LEDs, and diodes, this compact relay guarantees durable performance in demanding environments. Easy to install via screw terminal or DIN rail, it supports a wide voltage range for AC/DC applications, providing robust dielectric strength and compliance with safety standards. Perfect for automation, lighting, shipyards, hoists, and control panels requiring high reliability and flexibility.
Buy Finder Series 97 relay with 8-16A capacity now and experience unmatched reliability and performance for industrial automation and control systems.
Frequently Asked Questions
Where can I buy FINDER 465290240074?
You can click on the BUY or RFQ button to purchase 465290240074 from an authorized FINDER distributor.
How do I troubleshoot issues or seek technical support for part 465290240074?
You can download the 465290240074 datasheet or visit the FINDER website for support.
Who is the manufacturer of 465290240074?
FINDER
