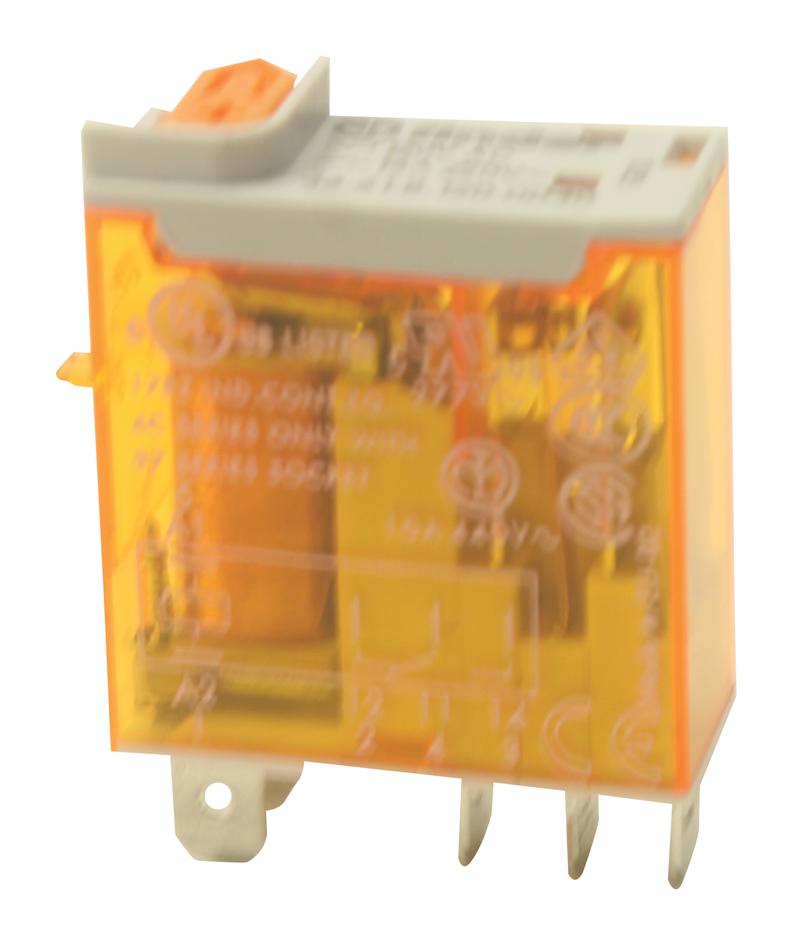

FINDER 466181200040 Industrial Plug-in Relay
The 46 series miniature industrial relay features a plug-in mount design with an AC coil, single SPDT contact with cadmium-free AgNi material, and a lockable test button with mechanical indicator. Suitable for industrial environments, it operates efficiently within -40°C to 70°C, ensuring durability across various applications. Compatible with 97-series sockets, this relay offers rated values of 10 A at 250 V AC, dielectric strength of 6 kV, and protection category IP20. Its robust construction supports reliable switching in automation for control panels, motor operation, and signal control in harsh environments. External DIN rail mounting options and optional accessories enhance its versatility for automation systems.
FINDER 466181200040 Industrial Plug-in Relay Specifications:
- Rated current: 10 A at 250 V AC
- Dielectric strength: 6 kV (coil and contacts)
- Protection category: IP20
- Operating temperature: -40°C to 70°C
- Contacts material: Cadmium-free AgNi
- Contact configuration: SPDT (1CO)
- Rated switching voltage: 250 V AC
- Rated load AC1: 2000 VA
- Mechanical life: 10^7 cycles
- Electrical life: 10^5 cycles
- Coil voltage ranges: 12V, 24V, 48V, 110V, 125V, 230V, 240V AC/DC
- Coil resistance varies by voltage (e.g., 264Ω at 24V AC, 121Ω at 110V AC)
- Ambient temperature: -40°C to +70°C
- Ambient humidity: up to 95% RH (non-condensing)
- Wire strip length for socket connection: 8 mm
- Suitable for PCB mounting, socket (97.01), or rail mounting with accessories
- Certifications: CE, compliance with EN 61810-1 standards
Buy the Finder Series 46 Relay: 466181200040
Purchase the Finder 466181200040 industrial relay online today and experience reliable switching performance in demanding industrial environments. Designed for automation control panels, motor operation, and signal switching, this relay offers a rated current of 10A at 250V AC, with cadmium-free AgNi contacts ensuring longevity and safety. Its robust construction withstands temperatures from -40°C to 70°C, making it ideal for harsh conditions. Easy to install with socket compatibility, it provides dependable operation with dielectric strength of 6 kV and protection category IP20. Invest in quality, precision, and durability—order now for seamless automation integration.
Get Finder 466181200040 today—built for precision and long-lasting durability in industrial automation.
