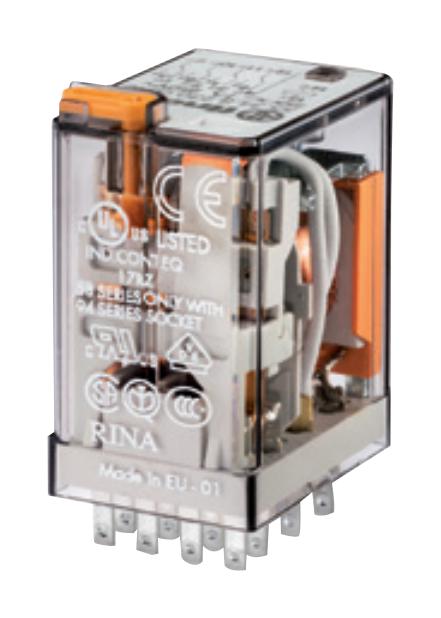

FINDER 553481100054 General Purpose Relay
The Finder 55.34.8.110.0054 is a versatile general-purpose relay ideal for a wide range of industrial applications. Designed for printed circuit board mounting, this relay offers a 4 CO (4 pole double throw) configuration and a rated current of 7A, making it suitable for controlling various electrical circuits. It's commonly used in automation systems for blinds, grilles, and shutters, as well as in road and tunnel lighting, hoists, cranes, circuit breakers, and electrical distribution panels. The relay features AC and DC coil options, cadmium-free contacts, and a wide operating temperature range (-40°C to +85°C), ensuring reliable performance in harsh environments. Its plug-in design simplifies maintenance and replacement, while optional features like lockable test buttons, mechanical flag indicators, and LED coil suppression enhance functionality and ease of use.
FINDER 553481100054 General Purpose Relay Specifications:
- Contact Configuration: 4 CO (4PDT)
- Rated Current: 7 A
- Maximum Peak Current: 15 A
- Rated Voltage: 250 V AC
- Maximum Switching Voltage: 400 V AC
- Rated Load AC1: 1750 VA
- Rated Load AC15 (230 V AC): 350 VA
- Single Phase Motor Rating (230 V AC): 0.125 kW
- Breaking Capacity DC1 (30/110/220 V): 7/0.5/0.25 A
- Minimum Switching Load: 300 mW (5/5)
- Standard Contact Material: AgNi
- Nominal Voltage (UN) AC (50/60 Hz): 6 - 12 - 24 - 48 - 60 - 110 - 120 - 230 - 240 V
- Nominal Voltage (UN) DC: 6 - 12 - 24 - 48 - 60 - 110 - 125 - 220 V
- Rated Power AC/DC: 1.5/1 VA (50 Hz)/W
- Operating Range AC: (0.8…1.1)UN
- Operating Range DC: (0.8…1.1)UN
- Holding Voltage AC: 0.8 UN
- Holding Voltage DC: 0.5 UN
- Must Drop-Out Voltage AC: 0.2 UN
- Must Drop-Out Voltage DC: 0.1 UN
- Mechanical Life AC/DC: 20 · 10 [6] / 50 · 10 [6] cycles
- Electrical Life at Rated Load AC1: 150 · 10 [3] cycles
- Operate/Release Time: 9/5 ms
- Insulation Between Coil and Contacts: 4 kV
- Dielectric Strength Between Open Contacts: 1000 V AC
- Ambient Temperature Range: -40…+85 °C
