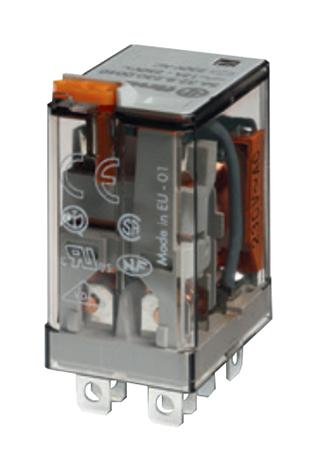

FINDER 563281100040 Industrial Power Relay
This miniature power relay features a 12 A rated current, suitable for controlling industrial motors, furnaces, and electrical management systems. It offers both AC and DC coil options, with cadmium-free contacts and high dielectric strength, making it reliable for automation and control applications. The relay's compact design includes plug-in and PCB mount configurations, mechanical flag indicators, lockable test buttons, and optional EMC suppression for noise reduction. It is RoHS compliant, suitable for environments with operating temperatures between -40°C and +70°C, and designed for demanding industrial use with IP20 protection category.
FINDER 563281100040 Industrial Power Relay Specifications:
- Rated current: 12A-250V AC/DC
- Dielectric strength: 2kVAC
- Protection category: IP20
- Ambient temperature: -40°C to +70°C
- Screw torque: 0.8 Nm
- Wire strip length: 8 mm
- Coil voltage options: 6, 12, 24, 48, 60, 110, 125, 220, 240, 400 VAC/DC
- Mechanical life: 20 million cycles
- Electrical life at rated load: 100 million cycles
- Contact material: Silver Nickel (AgNi)
- Contact configuration: 2 pole (DPDT), 4 pole (4PDT), normally open or changeover
- Max switching voltage: 250/400 VAC
- Rated load: 3000 VA AC
- Coil power consumption: 15 VA
Buy the Finder Series 56 Power Relay: 563281100040
Order the Finder 563281100040 industrial power relay online now to enhance your control system. This relay supports 12 A load capacity, features both AC and DC coil options, and offers reliable performance suitable for motors, furnaces, and automation panels. Its robust construction ensures long service life with up to 100 million electrical cycles. The compact plug-in or PCB mount design simplifies installation in industrial environments. Enjoy fast delivery and seamless online purchasing to improve your equipment’s performance efficiently.
Get Finder 563281100040 miniature power relay today—built for precision, durability, and industrial automation.
Frequently Asked Questions
Where can I buy FINDER 563281100040?
You can click on the BUY or RFQ button to purchase 563281100040 from an authorized FINDER distributor.
How do I troubleshoot issues or seek technical support for part 563281100040?
You can download the 563281100040 datasheet or visit the FINDER website for support.
Who is the manufacturer of 563281100040?
FINDER
