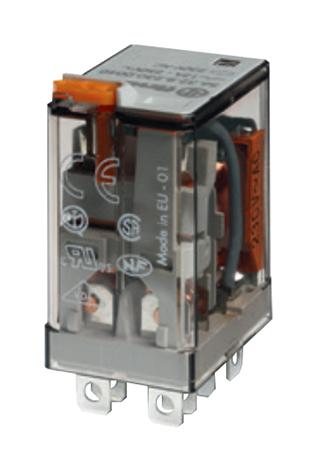

FINDER 563282300040 Control Relay
The 56 series miniature power relays are 12 A, plug-in or PCB mount, suitable for industrial applications including control of motors, circuit breakers, and management of electrical power. Features include AC and DC coil options, cadmium-free contacts, lockable test buttons, mechanical flags, and various contact configurations such as 2CO, 4CO, and 2NO. These relays provide reliable switching with elevated dielectric strength, high insulation, and environmental protection, designed for robust operation in demanding settings with ambient temperatures from -40°C to +70°C.
FINDER 563282300040 Control Relay Specifications:
- Rated current: 12A at 250V AC
- Dielectric strength: 2kVAC
- Protection category: IP20
- Ambient temperature: -40°C to +70°C
- Switching voltage: up to 250/400 VAC
- Contact materials: Silver Nickel, Silver Cadmium Oxide (cadmium-free option available)
- Coil voltages: 6V, 12V, 24V, 48V, 60V, 110V, 125V, 220V, 240V, 400V depending on type
- Coil power consumption: 15 VA (AC), varies for DC coils
- Mechanical life: 20 million cycles
- Electrical life: up to 100 million cycles at rated load
- Mounting: Plug-in (Faston 187) or PCB mounting
- Additional features: Lockable test button, mechanical flag indicator, EMC suppression modules, optional accessories for mounting and wiring
- Compliance: CE, UL, and other international certifications
Buy the Finder 563282300040 – Reliable Control Relays for Industrial Applications
Purchase the Finder control relay today for robust industrial control solutions. Featuring 12 A switching capacity, AC and DC coil options, and cadmium-free contacts, this relay ensures reliable operation in machinery, motor control, and power management. Its compact plug-in or PCB mount design simplifies installation, with high dielectric strength and environmental protection rated IP20. Designed for a wide temperature range from -40°C to +70°C, it offers excellent durability and electrical life, making it an essential component for automation and electrical systems.
Get Finder 563282300040 today—built for precision and long-lasting durability in demanding industrial environments.
