FINDER 601281200040 General Purpose DPDT Relay
This is a general-purpose DPDT relay rated for 10A operation with a 120V AC coil. It features silver-nickel (AgNi) contact materials for reliable switching, a lockable test button for troubleshooting, and an mechanical indicator for status identification.
FINDER 601281200040 General Purpose DPDT Relay Specifications:
- Contact configuration: 2 CO (PDT)
- Rated current: 10 A
- Maximum peak current: 20 A
- Rated voltage: 250 V AC
- Maximum switching voltage: 400 V AC
- Rated load: AC1 2,500 VA
- AC15 load at 230 V: 500 VA
- Single phase motor rating: 0.37 kW
- Breaking capacity DC1: 30/110/220V A 10/0.4/0.15
- Contact material: AgNi
- Nominal coil voltage: 120 VAC (50/60 Hz)
- Rated power: 2.2 VA
- Operating range: 0.8 to 1.1 Un
- Holding voltage: 0.8 Un / 0.5 Un
- Drop-out voltage: 0.2 Un / 0.1 Un
- Mechanical life: 0 - 10^10 cycles
- Electrical life: 200 cycles at rated load
- Insulation: Between coil and contacts 4 kV / dielectric strength 1,000 V AC
- Ambient temperature: -40°C to +70°C
- Environmental protection: RTI

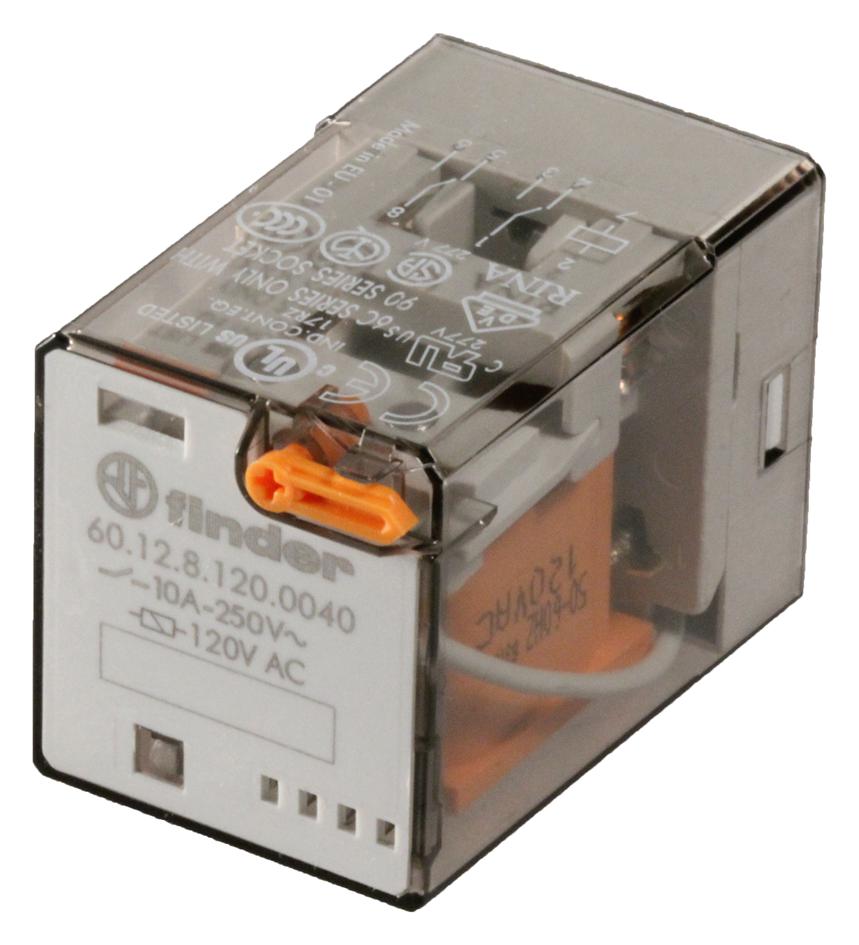

Buy the Finder Series 60 DPDT Relay: 601281200040
Experience reliable switching with Finder general-purpose DPDT relay rated for 10A. Featuring AgNi contacts, a lockable test button, and a mechanical indicator, it is perfect for industrial control, automation systems, and reliable switching applications. Its robust design supports operation at 120V AC coil voltage, ensuring long-term durability in demanding environments. Easy to install on panel or DIN rail, this relay guarantees excellent performance for your automation needs. Purchase online for fast delivery and trusted quality.
Get Finder 601281200040 today—built for precision and long-lasting durability in industrial automation.
Frequently Asked Questions
Where can I buy FINDER 601281200040?
You can click on the BUY or RFQ button to purchase 601281200040 from an authorized FINDER distributor.
How do I troubleshoot issues or seek technical support for part 601281200040?
You can download the 601281200040 datasheet or visit the FINDER website for support.
Who is the manufacturer of 601281200040?
FINDER
