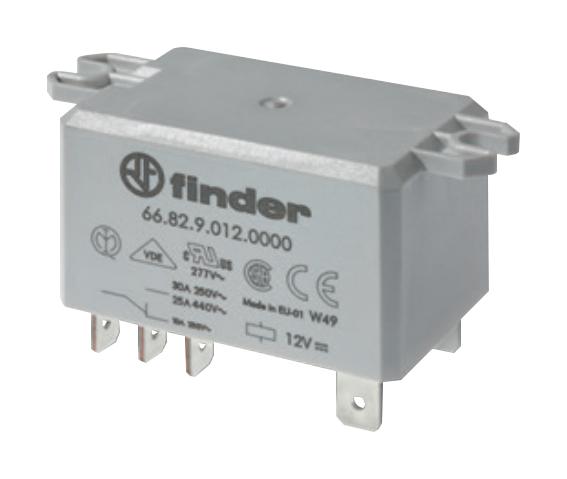

FINDER 668290240600 Power Relay
The Power Relay 66 series offers reliable switching for industrial applications with up to 30 A rated contacts. It features reinforced insulation per EN 60335-1, options for AC and DC coils, and optional ATEX compliance for hazardous environments. Available in PCB and flange mount configurations, these relays are suitable for controlling motors, burners, and generators, providing durability and safety for demanding industrial operations. Designed with cadmium-free contacts and high dielectric strength, they ensure efficient and safe switching in diverse industrial settings.
FINDER 668290240600 Power Relay Specifications:
- Rated current: 30 A
- Maximum peak current: 50 A
- Rated voltage: 250/440 VAC
- Rated load: 7500 VA (AC) or 1200 VA (AC15, 230V)
- Minimum switching load: 1000 mW (10/10 V/mA)
- Coil voltages: 6, 9, 12, 24, 110/115, 120/125, 230/240 VAC/DC
- Coil power: varies depending on voltage, e.g., 3.6 W at 6 VAC, 1.7 W at 24 VAC
- Coil insulation: Reinforced per EN 61810-1, 8 mm creepage & clearance
- Dielectric strength: 1500 VAC between open contacts, 4000 VAC between coil and contacts
- Environmental: -40°C to +70°C ambient temperature, RTH and RTI protection
- Contact material: AgCdO, AgNi options available
- Environmental protections: optional ATEX Ex nC, wash-tight version available
- Approvals: UL, CE, ATEX, RINA, G, G G
Buy the FINDER 668290240600 – Reliable Industrial Power Relay for Industrial Applications
Get your FINDER Series 668290240600 power relay today online and ensure reliable control in your industrial operations. Designed for high current switching up to 30 A, this relay features reinforced insulation, options for AC and DC coils, and is available in PCB or flange mount configurations. Suitable for controlling motors, burners, and generators, it offers high dielectric strength, environmental protection, and optional ATEX compliance for hazardous areas. Invest today to improve safety, durability, and operational efficiency in your industrial systems.
Order your FINDER Series 668290240600 industrial power relay today and enhance your machinery with dependable, high-capacity switching for demanding industrial environments.
