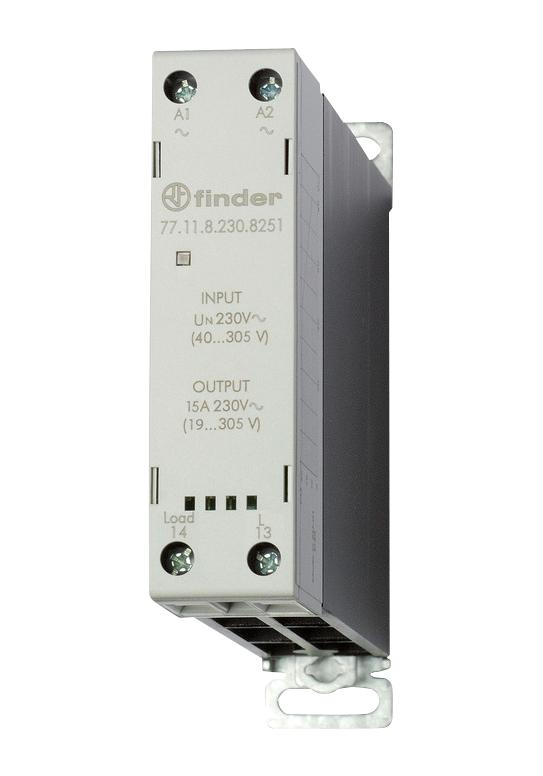

FINDER 771182308250 Modular Solid State Relay
This modular solid state relay is designed for efficient switching in industrial automation. It features high endurance, silent operation, and rapid switching capabilities with zero-crossing and random switch-on options. Suitable for controlling lamps, motors, contactors, and electromagnetic valves, it supports a wide input voltage range and offers insulation between input and output. Mountable on heatsinks or DIN rails, this relay provides reliable operation under various ambient temperatures, making it ideal for energy management and machinery control applications.
FINDER 771182308250 Modular Solid State Relay Specifications:
- Rated current: 5A to 50A
- Rated voltage: 24V, 230V, 600V AC
- Switching voltage range: 16…280V AC / 4…32V DC
- Insulation: 6KV (1.2/50 µs)
- Operating temperature: -20°C to +80°C
- Electrical life cycles: 10^8
- Operate/release time: 0.05 to 40 ms
- Protection category: IP 20
- Mounting: 35 mm rail or panel mount
- Input power: 0.5 to 7.5 W
- Repetitive peak off-state voltage: 600 to 1200V
- Dielectric strength (input-output): 4-6 KV
- Approvals: CE, UL, FAL
Buy the Buy Finder Modular Solid State Relay Part Number 771182308250 Online
Enhance your industrial automation setup by purchasing the Finder modular solid state relay online. This relay offers high switching speed, silent operation, and excellent durability suitable for controlling motors, lamps, and valves. Its compact design allows easy mounting on heatsinks or DIN rails. With a wide input voltage range and advanced insulation, it ensures safe and reliable performance across various environments. Perfect for energy management and machinery applications, it guarantees seamless operation and long service life for demanding industrial processes.
Buy Finder 771182308250 now and experience unmatched reliability and performance with high endurance and silent switching for industrial automation.
Frequently Asked Questions
Where can I buy FINDER 771182308250?
You can click on the BUY or RFQ button to purchase 771182308250 from an authorized FINDER distributor.
How do I troubleshoot issues or seek technical support for part 771182308250?
You can download the 771182308250 datasheet or visit the FINDER website for support.
Who is the manufacturer of 771182308250?
FINDER
