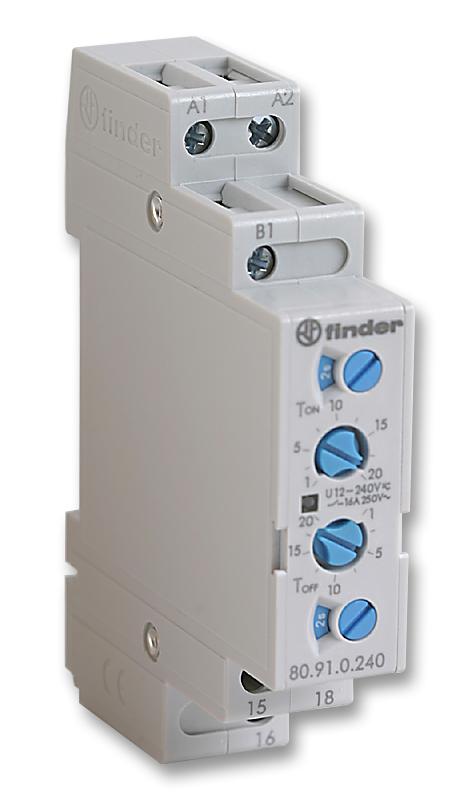

FINDER 809102400000 Multi-function Timer Relay
The Finder 80.91.0.240.0000 is a multi-function timer relay offering a wide range of timing functions and voltage options. Its compact 17.5mm width and 35mm rail mounting make it suitable for various panel installations. The relay incorporates 'PWM clever' technology for efficient operation and allows adjustment using both flat and cross-head screwdrivers. It's commonly used in industrial automation, process control, and building management systems for tasks such as sequencing, flashing, and delayed starting.
FINDER 809102400000 Multi-function Timer Relay Specifications:
- Series: 80 Series
- Function: Asymmetrical Flasher
- Width: 17.5 mm
- Time Scales: 0.1 s to 24 h
- Mounting: 35 mm rail (EN 60715)
- Adjustment: Flat blade and cross head screwdrivers
- Voltage: Multi-voltage
- Rated Current: 16 A
- Maximum Peak Current: 30 A
- Rated Voltage: 250 V AC
- Maximum Switching Voltage: 400 V
- Rated Load AC1: 4000 VA
- Rated Load AC15 (230 V AC): 750 VA
- Breaking Capacity DC1 (30/110/220 V): 16/0.3/0.12 A
- Minimum Switching Load: 500 mW (10/5 V/mA)
- Contact Material: AgNi
- Nominal Voltage (UN) AC: 24…240 V
- Nominal Voltage (UN) DC: 12…240 V
- Rated Power AC/DC: < 1.8 VA
- Operating Range AC: 10.8…265 V
- Operating Range DC: 10.8…265 V
- Specified Time Range: (0.1…2)s, (1…20)s, (0.1…2)min, (1…20)min, (0.1…2)h, (1…24)h
- Repeatability: ± 1%
- Recovery Time: 100 ms
- Setting Accuracy: ± 5%
Buy the 80.91.0.240.0000 Finder Multi-function Timer Relay | myMectronic
Purchase the Finder 80.91.0.240.0000 securely online and ensure reliable time control for your industrial applications.
Buy Now
Frequently Asked Questions
Where can I buy FINDER 809102400000?
You can click on the BUY or RFQ button to purchase 809102400000 from an authorized FINDER distributor.
How do I troubleshoot issues or seek technical support for part 809102400000?
You can download the 809102400000 datasheet or visit the FINDER website for support.
Who is the manufacturer of 809102400000?
FINDER
