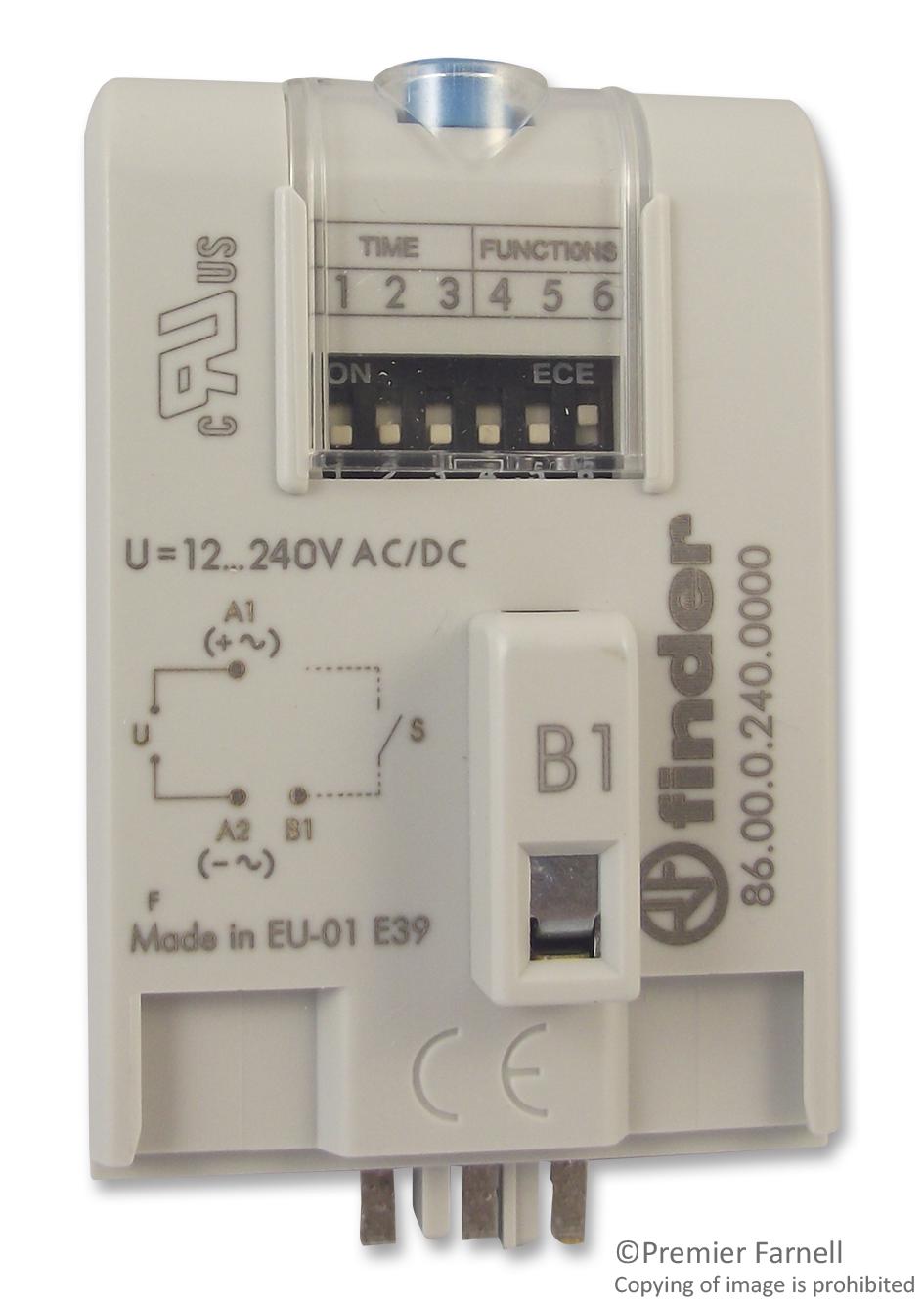

FINDER 860002400000 Timer modules
The timer modules are versatile control devices suitable for various automation applications, featuring multi-function and bi-function models with wide voltage ranges from 12 to 240V AC/DC. They support multiple timing functions such as on-delay, interval, off-delay, and flashing, with adjustable time scales from 0.05 seconds to 100 hours. Compatible with relay sockets, they include LED indicators for status monitoring, easy wiring with push-in or screw terminals, and are suitable for panel or DIN rail mounting. Approved for industrial use with protection ratings of IP 20 and tested for electromagnetic compatibility.
FINDER 860002400000 Timer modules Specifications:
- Supply voltage: 12...240V AC/DC (86.00), 12...24V AC/DC or 230...240V AC (86.30)
- Rated power: 0.15 W
- Timing range: 0.05 s to 100 h with adjustable functions
- Functions include Al (on-delay), Di (interval), SW (flasher), BE (off-delay), CE (on/off delay), DE, EE, FE
- Contact configuration: SPST, SPDT options
- Rated current: up to 16A at 250V
- Dielectric strength: 2kVAC (socket), 6kVAC (connector)
- Protection: IP 20
- Ambient temperature: -40°C to +70°C
- Wire size: 0.5 mm² to 2.5 mm², AWG 20-14
- Mounting: Panel or 35 mm DIN rail
- Protection category: IP 20
- Standards: Compliant with EN 61000-4 series for EMC, CE, and EAL approvals
- Repeatability: ±5%
- Recovery time: <50 ms
- Settable time scale: via DIP switches or rotary dials
- LED indicators for status and timing in progress
- Suitable for controlling relays, motors, and automation systems
Buy the Finder Series 86 Timer Modules: 860002400000
Shop Finder timer modules online today to enjoy reliable performance in your automation projects. These versatile control units feature multiple timing functions, adjustable durations from milliseconds to hours, LED status indicators, and easy wiring options for panel or DIN rail mounting. With broad voltage compatibility from 12V to 240V and rated currents up to 16A, they meet strict industrial standards. Perfect for controlling relays, motors, and complex automation setups, these timer modules ensure precision, durability, and seamless integration in any control system.
Get Finder 860002400000 today—built for precision timing and long-lasting durability in industrial automation.
Frequently Asked Questions
Where can I buy FINDER 860002400000?
You can click on the BUY or RFQ button to purchase 860002400000 from an authorized FINDER distributor.
How do I troubleshoot issues or seek technical support for part 860002400000?
You can download the 860002400000 datasheet or visit the FINDER website for support.
Who is the manufacturer of 860002400000?
FINDER
