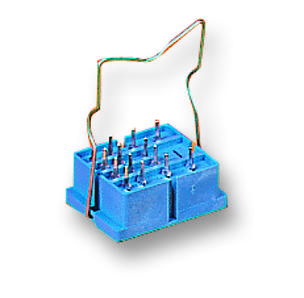

FINDER 9414SMA General Purpose Relay
The Finder 94.14.SMA series relays are designed for general-purpose applications requiring reliable switching capabilities. These relays offer a versatile solution with options for AC or DC coils, varying pole configurations (2, 3, or 4), and features like cadmium-free contacts and RT III wash tight options. They are suitable for industrial automation, control panels, and various electrical circuits where dependable performance is essential. The lockable test button and mechanical indicator provide visual feedback on relay status, enhancing operational safety and diagnostics.
FINDER 9414SMA General Purpose Relay Specifications:
- Rated Current: 10-7 A
- Maximum Peak Current: 20-15 A
- Rated Voltage: 250 V AC
- Maximum Switching Voltage: 400 V AC
- Rated Load AC1: 2,500 VA
- Rated Load AC15 (230 V AC): 500 VA
- Single Phase Motor Rating: 0.37 kW
- Breaking Capacity DC1: 10/0.25/0.12 A
- Minimum Switching Load: 300 mW
- Contact Material: AgNi
- Coil Voltage: 6-24 V AC/DC
- Operating Range: (0.8…1.1)UN
- Holding Voltage: 0.8 UN
- Mechanical Life: 20 · 10^6 cycles
- Electrical Life: 200 · 10^3 cycles
- Operate/Release Time: 10/5 ms
- Insulation Between Coil and Contacts: 4 kV
- Dielectric Strength: 1,000 V AC
- Ambient Temperature Range: –40…+85 °C
