FISCHER ELEKTRONIK LA1015024V Cooling Aggregate

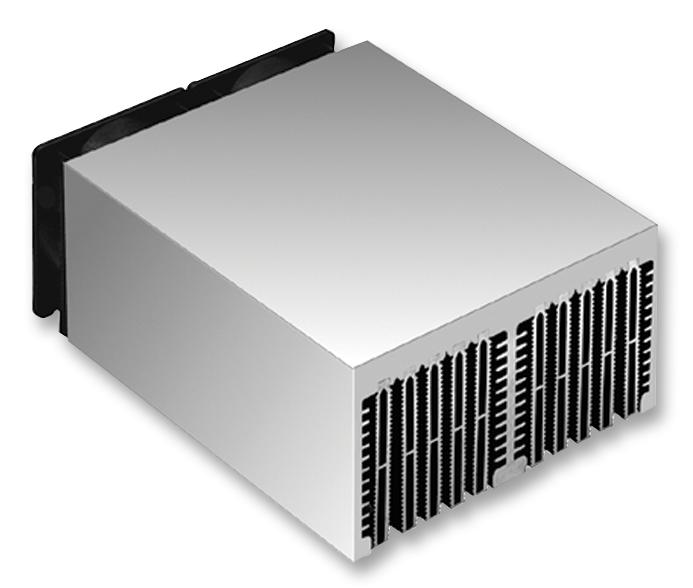

The LA 10/150 24V is a compact, fan-cooled heat sink made of degreased aluminum, designed for efficient thermal management in HVAC and electronic applications. Featuring a hollow fin geometry, it optimizes airflow for superior heat dissipation. Equipped with a 150mm Papst axial fan, it provides a thermal resistance from 0.182 to 0.055 K/W, supporting maximum speeds up to 5000 RPM. The flat mounting surface ensures easy semiconductor installation. Its operating temperature range is from -20°C to 75°C, and it consumes 6W power, making it ideal for reliable cooling solutions.
FISCHER ELEKTRONIK LA1015024V Cooling Aggregate Specifications:
- Material: Degreased aluminum
- Fan Type: Axial fan
- Diameter: 150 mm
- Power Input: 6 W
- Maximum Speed: 5000 RPM
- Thermal Resistance: 0.182 to 0.055 K/W
- Operating Temperature Range: -20°C to 75°C
- Surface Mounting: Flat surface for semiconductor mounting
- Application: HVAC, electronic cooling
- Dimensions: 150 mm diameter
- Protection: Includes protection grid for axial fan
- Hole Pattern: Compatible with standard mounting patterns
Buy the Elektronik Series Cooling Aggregates: LA 10/150 24V
Experience efficient thermal management with this compact fan-cooled heat sink featuring hollow fins for superior airflow and heat dissipation. Made from durable degreased aluminum, it includes a high-quality axial fan with a maximum speed of 5000 RPM, supporting applications in HVAC systems and electronic cooling. The flat surface allows easy semiconductor mounting. With a thermal resistance ranging from 0.182 to 0.055 K/W and an operating temperature range from -20°C to 75°C, it offers reliable, effective cooling with minimal space requirements.
Buy Elektronik LA 10/150 24V fan-cooled heat sink now and experience reliable thermal management for electronic and HVAC systems, ensuring optimal performance.
