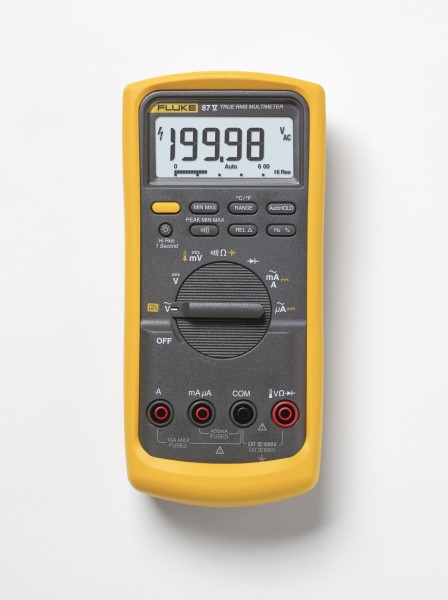

FLUKE 2074974 Industrial True-RMS Multimeter
The Fluke 87V Industrial True-RMS Multimeter is a robust and versatile tool for professionals working with motor drives, plant automation, power distribution, and electromechanical equipment. It offers enhanced measurement functions, troubleshooting features, and improved accuracy compared to previous models. With Category III, 1000 V and Category IV 600 V safety ratings, it provides reliable performance and protection in challenging environments. The included accessories, such as the soft case and heat-resistant test leads, further enhance its usability and value.
FLUKE 2074974 Industrial True-RMS Multimeter Specifications:
- DC Volts Range: 600.0 mV, 6.000 V, 60.00 V, 600.0 V, 1000 V
- DC Volts Basic Accuracy: 0.1 % (83V), 0.05 % (87V)
- AC Volts Range: 600.0 mV, 6.000 V, 60.00 V, 600.0 V, 1000 V
- AC Volts Basic Accuracy: 0.5 % (83V), 0.7 % (87V) (True-rms)
- DC Current Range: 600.0 µA, 6000 µA, 60.00 mA, 600.O mA, 6.000 A, 10.00 A
- DC Current Basic Accuracy: 0.4 % (83V), 0.2 % (87V)
- AC Current Range: 600.0 µA, 6000 µA, 60.00 mA, 600.O mA, 6.000 A, 10.00 A
- AC Current Basic Accuracy: 1.2 % (83V), 1.0 % (87V) (True-rms)
- Temperature Range (excl. probe): -200 to 1090 °C (-328 to 1994 °F)
- 80BK Temperature Probe Range: -40 to 260 °C (-40 to 500 °F)
- Resistance Range: 600.0W, 6.000 kW, 60.00 kW, 600.0 kW, 6.000 MW, 50.00 MW
- Resistance Basic Accuracy: 0.4 % (83V), 0.2 % (87V)
- Capacitance Range: 10.00 nF, 100.0 nF, 1.000 µF, 10.00µF, 100.0µF, 9,999µF
- Capacitance Basic Accuracy: 1.0 %
- Frequency Range: 199.99 Hz, 1.9999 kHz, 19.999 kHz, 199.99 kHz
- Frequency Basic Accuracy: 0.005 %
