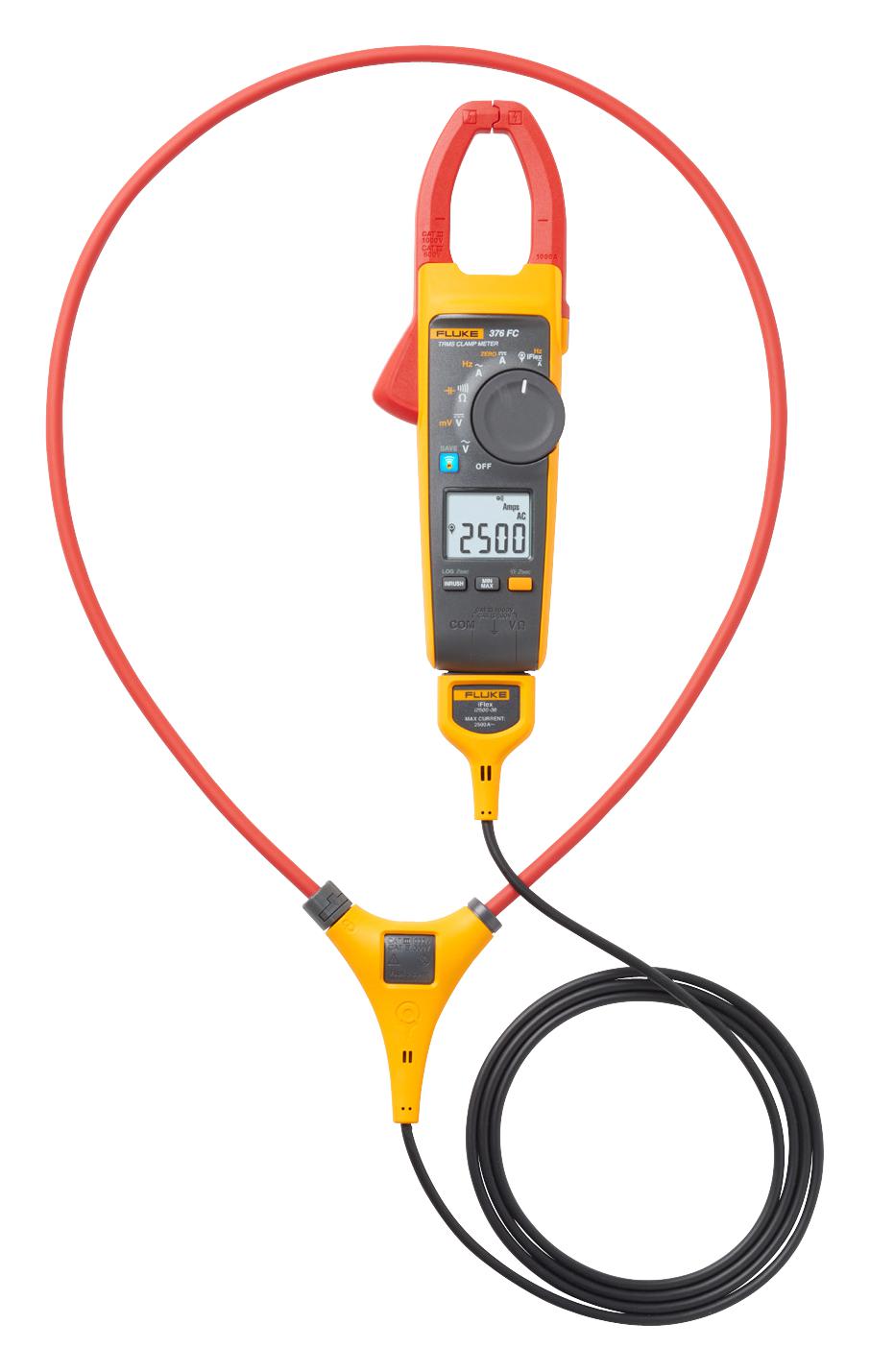

FLUKE FLK376FCIFLEX36 Wireless Clamp Meter
This True RMS AC/DC clamp meter with iFlex flexible current probe features a 36-inch cable and a 1000V rating. It captures measurements even outside the arc flash zone and offers Bluetooth connectivity for wireless data transfer to your mobile device. The device is rated CAT III 1000V and CAT IV 600V, ensuring safety during high-voltage measurements. It accurately measures True-RMS voltage and current on non-linear signals, includes an integrated VFD low-pass filter for precise motor drive readings, and measures up to 1000A AC/DC, as well as 2500A AC with the flexible probe. It also measures voltage up to 1000V AC/DC, frequency up to 500Hz, resistance up to 60KΩ with continuity testing, and capacitance up to 1000μF. Advanced features include min, max, average, and in-rush recording for capturing signal variations, along with logging, trend analysis, and Bluetooth data transfer via Fluke Connect app. The meter allows wireless measurement logging, report generation, and real-time sharing in the field, reducing the need for PPE. Additional features include a magnetic hanging strap for convenient hands-free operation. The package includes the clamp meter, flexible current probe, test leads, magnetic strap, carrying case, two AA batteries, a coated instruction card, and safety information sheet.
FLUKE FLK376FCIFLEX36 Wireless Clamp Meter Specifications:
- Maximum voltage: 1000 V between terminal and earth ground
- Current measurement: 1000 A AC/DC (376 FC); 600 A AC/DC (375 FC and 374 FC); 2500 A AC with iFlex
- Voltage measurement: 1000 V AC/DC
- Frequency measurement: Up to 500 Hz
- Resistance: Up to 60KΩ with continuity detection
- Capacitance: Up to 1000μF
- Battery type: 2 AA alkaline batteries
- Operating temperature: -10°C to +50°C
- Storage temperature: -40°C to +60°C
- Dimensions: 24.9 cm x 8.5 cm x 4.5 cm
- Weight: 395 g
- Jaw opening: 34 mm
- Flexible current probe diameter: 7.5 mm
- Flexible current probe cable length: 1.8 m
- Safety rating: IEC 61010-1, Pollution Degree 2; IEC 61010-2-032, CAT III 1000 V / CAT IV 600 V; IEC 61010-2-033, CAT III 1000 V / CAT IV 600 V
- IP rating: IP30 (non-operating)
Buy the Fluke FLK376FC I – Reliable Wireless Clamp for Industrial Applications
Upgrade your electrical troubleshooting today with the Fluke Wireless Clamp Meter. Equipped with True-RMS measurements, a flexible probe, Bluetooth connectivity, and high safety ratings, it simplifies complex electrical diagnostics. Capture and log measurements remotely to improve safety and efficiency, generate detailed reports in the field, and share data instantly. Its rugged design and comprehensive feature set make it ideal for industrial, commercial, and maintenance technicians seeking reliable, accurate, and wireless measurement solutions. Buy online now for fast delivery and superior troubleshooting performance.
Order your Fluke Series 376 FC wireless clamp meter today and enhance your electrical troubleshooting with advanced Bluetooth measurement capabilities.
Frequently Asked Questions
Where can I buy FLUKE FLK376FCIFLEX36?
You can click on the BUY or RFQ button to purchase FLK376FCIFLEX36 from an authorized FLUKE distributor.
How do I troubleshoot issues or seek technical support for part FLK376FCIFLEX36?
You can download the FLK376FCIFLEX36 datasheet or visit the FLUKE website for support.
Who is the manufacturer of FLK376FCIFLEX36?
FLUKE
