FLUKE FLUKE125BNA Industrial Oscilloscope

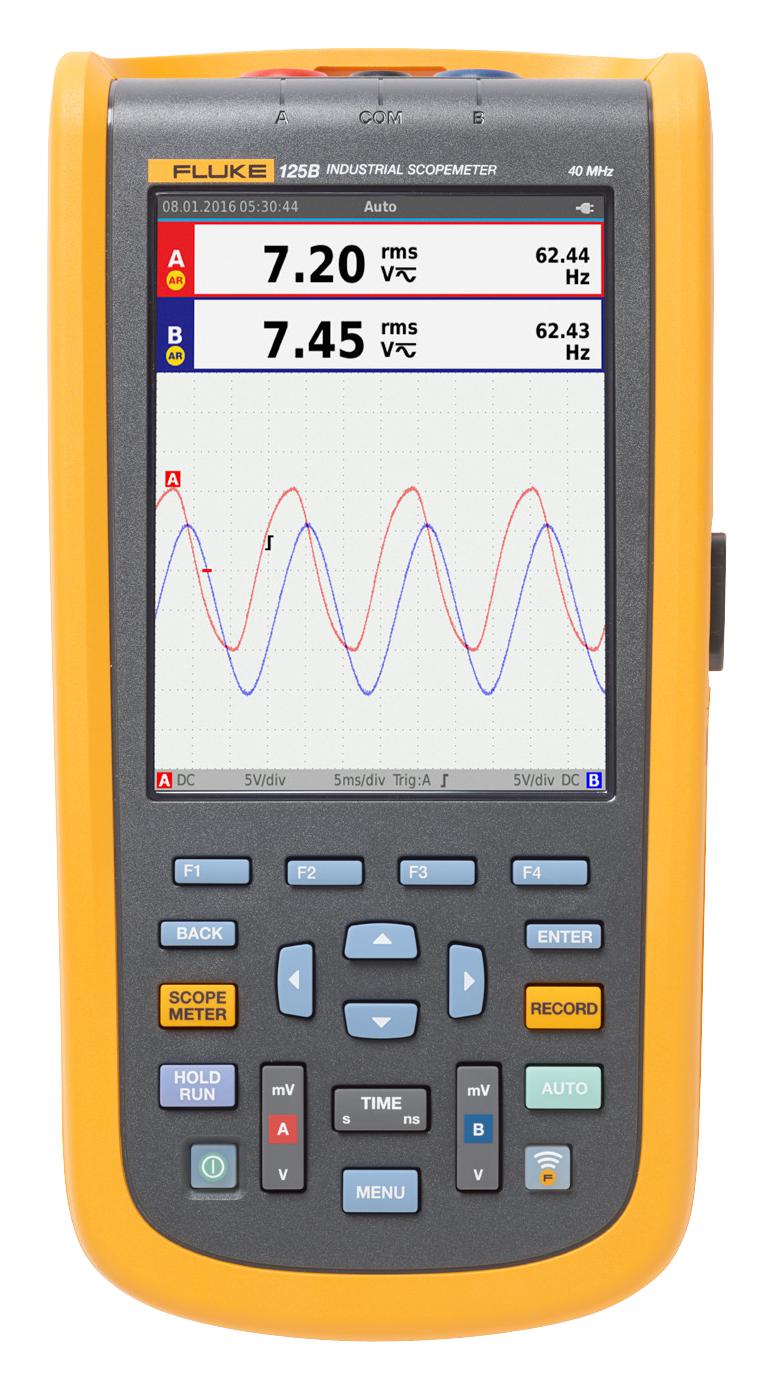

The compact Fluke 125B Industrial ScopeMeter® is a rugged oscilloscope designed for troubleshooting and maintenance of industrial electrical and electro-mechanical equipment. It integrates an oscilloscope, multimeter, and high-speed recorder into a single easy-to-use device. The ScopeMeter® 120B Series features innovative functions such as Connect and View™ trigger and setup technology, and Fluke IntellaSet™ technology for automatic measurement adjustments, enabling technicians to troubleshoot more efficiently. It offers dual-input digital oscilloscopes with 40 MHz bandwidth, two 5,000-count true-rms digital multimeters, and Recorder Event Detect for capturing intermittent signals. Optional WiFi allows wireless data transfer to PCs, laptops, or the Fluke Connect® app. The device supports a range of applications including automation, industrial maintenance, motor drive, and control testing. Included accessories comprise test leads, probes, adapters, software, a carrying case, and more.
FLUKE FLUKE125BNA Industrial Oscilloscope Specifications:
- Dual-input digital oscilloscope with 40 MHz or 20 MHz bandwidth
- Two 5,000-count true-rms digital multimeters
- Connect-and-View™ auto trigger technology for stable waveforms
- IntellaSet™ auto-measurement adjustment technology
- Recorder Event Detect captures intermittent signals up to 10 KHz
- Supports AC/DC voltage, current, resistance, capacitance, and power measurements
- Power measurements include VA, VAR, PF, DPF, and harmonic analysis
- Expandable micro SD card slot for data logging up to 14 days
- Battery life of approximately 7 hours, rechargeable Li-Ion battery
- Safety rated for CAT IV 600 V and CAT III 600 V environments
- Wireless data transfer via optional WiFi adaptor and USB interface
- Constructed to withstand vibration, shock, and IP51 ingress protection
- Size: 259 mm x 132 mm x 55 mm, weight: 1.4 kg including battery
Buy the Fluke FLUKE125B U– Reliable Oscilloscope for Industrial Applications
Purchase the Fluke 125B Industrial ScopeMeter online today and enhance your troubleshooting efficiency. Its rugged design, integrated multimeter, high-speed recorder, and wireless data transfer capabilities make it ideal for industrial electrical and mechanical system maintenance. With advanced auto-trigger, measurement, and recording features, you can quickly capture elusive faults, analyze signals, and store data securely in the cloud or on SD cards. Equip your team with this reliable, portable device for precise diagnostics, rapid troubleshooting, and improved system uptime, all available with a few clicks.
Buy Fluke 125B now and experience unmatched reliability and performance in industrial troubleshooting.
Frequently Asked Questions
Where can I buy FLUKE FLUKE125BNA?
You can click on the BUY or RFQ button to purchase FLUKE125BNA from an authorized FLUKE distributor.
How do I troubleshoot issues or seek technical support for part FLUKE125BNA?
You can download the FLUKE125BNA datasheet or visit the FLUKE website for support.
Who is the manufacturer of FLUKE125BNA?
FLUKE
