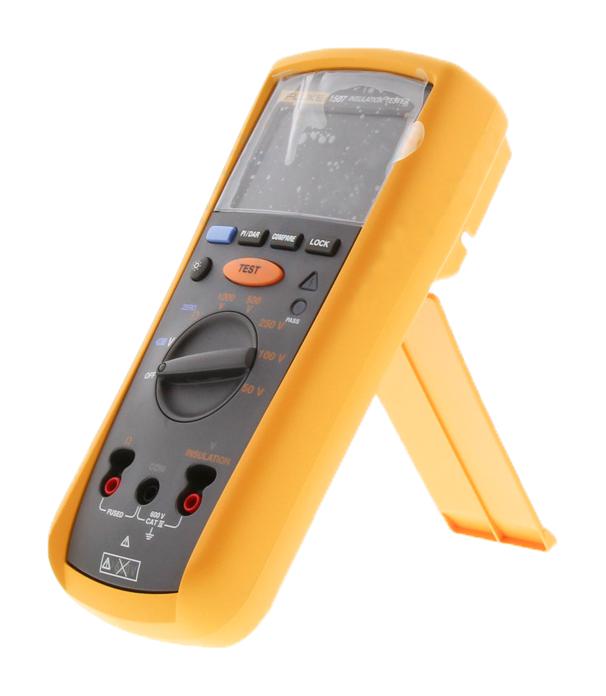

FLUKE FLUKE1507 Insulation Resistance Tester
The Fluke 1507 is a versatile, compact handheld insulation resistance tester designed for advanced industrial and electrical insulation testing. It offers multiple test voltages suitable for troubleshooting, commissioning, and preventative maintenance tasks. The device can perform insulation tests ranging from 0.01 MΩ to 2.0 GΩ, includes live circuit detection to prevent testing if voltage exceeds 30 V, and features auto-discharge of capacitive voltage for user safety. It also measures AC/DC voltage from 0.1 V to 600 V and resistance from 0.01 Ω to 20.00 kΩ. Additionally, it provides low-ohms earth-bond continuity testing at 200 mA, simplifies testing with an optional remote probe, and saves battery life through auto power-off. The large, backlit display ensures easy result reading. Certified with a CAT IV 600 V overvoltage rating, it can be equipped with an optional magnetic hanging system for hands-free operation. The package includes the insulation resistance tester, remote probe, test leads, test probes, alligator clips, and user documentation.
FLUKE FLUKE1507 Insulation Resistance Tester Specifications:
- Insulation test range: 0.01 MΩ to 2.0 GΩ (model 1507), 0.01 MΩ to 2000 MΩ (model 1503)
- Test voltages: 50 V, 100 V, 250 V, 500 V, 1000 V
- Insulation test voltage accuracy: ±20 %
- AC/DC voltage measurement: 0.1 V to 600 V with an accuracy of 600.0 V ± (1 V + (2 % + 3))
- Resistance measurement: 0.01 Ω to 20.00 kΩ, with 1 mA short-circuit test current
- Earth bond resistance: 20.00 Ω to 2000 Ω
- Overvoltage category rating: CAT IV 600 V
- Maximum voltage applied: 600 V ac/ms or dc
- Auto discharge time: < 0.5 seconds for C=1 μF or less
- Battery life: At least 1000 insulation tests and 2500 earth bond tests with fresh batteries
- Operating temperature: -20°C to 55°C
- Storage temperature: -40°C to 60°C
- Size: 5.0 cm H x 10.0 cm W x 20.3 cm L
- Weight: 550 g
- Certifications: CSA, TUV, IEC 61010-1
Buy the Fluke Series 1507 Insulation Resistance Tester: FLUKE1507
Purchase the Fluke 1507 insulation resistance tester online today and experience reliable, accurate testing for industrial and electrical insulation. With multiple test voltages, live circuit detection, auto-discharge, and a large backlit display, this device simplifies insulation testing and enhances safety. It comes with essential accessories including remote probes, test leads, and alligator clips, ensuring comprehensive testing capabilities. Its CAT IV 600 V rating guarantees high safety standards, making it ideal for troubleshooting, commissioning, and preventative maintenance in demanding industrial settings. Order now for quick delivery and improved test performance.
Get Fluke 1507 insulation tester today—designed for reliability and advanced insulation testing in industrial environments.
