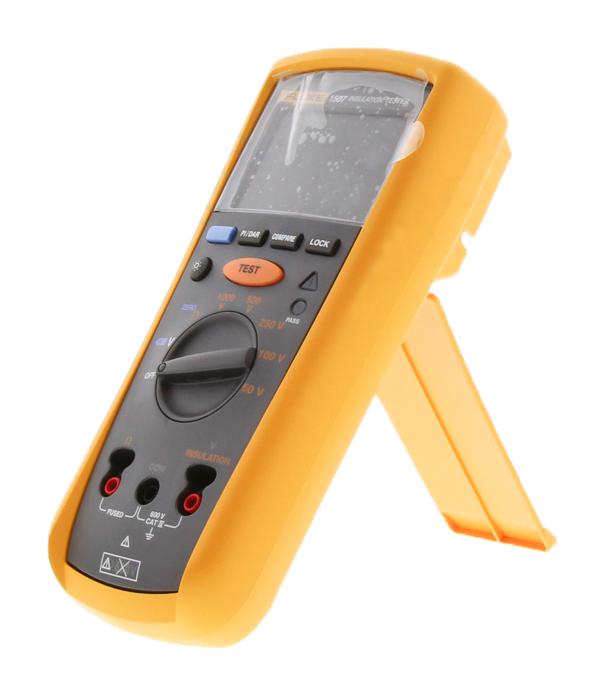

FLUKE FLUKE1507CAL Insulation Resistance Tester
The Fluke 1507 CAL is a portable, rugged insulation resistance tester designed for accurate testing and maintenance of electrical insulation. It measures insulation resistance from 0.01 MΩ to 10 GΩ using test voltages of 50V, 100V, 250V, 500V, and 1000V. The device features automatic discharge, a large backlit display, and compatibility with CAT IV 600V standards for user safety. Additional functions include testing for AC/DC voltage (0.1V to 600V), continuity (200mA), and earth bond resistance (0.01Ω to 20kΩ). It supports automatic calculations of polarization index and dielectric absorption ratio, saving time and enhancing troubleshooting efficiency. The tester is powered by four AA batteries, includes a remote probe, test leads, alligator clips, user documentation, and is suitable for testing, commissioning, and preventive maintenance in electrical systems. It complies with international safety standards and features an optional magnetic hanging system for hands-free operation.
FLUKE FLUKE1507CAL Insulation Resistance Tester Specifications:
- Test Resistance Range: 0.01 MΩ to 10 GΩ
- Test Voltages: 50V, 100V, 250V, 500V, 1000V
- Voltage Measurement: 0.1 V to 600 V AC/DC
- Continuity Current: 200mA
- Earth Bond Resistance: 0.01Ω to 20kΩ
- Display: Large backlit LCD
- Safety Rating: CAT IV 600V
- Power: Four AA batteries, approximately 1000 insulation tests per set
- Size: 5.0 cm H x 10.0 cm W x 20.3 cm L
- Weight: 550 g
- Overvoltage protection: 600 V
- Storage & Operating Temperature: -40°C to 60°C / -20°C to 55°C
- Certifications: CSA, TUV, IEC/EN 61010-1
- Additional Features: Auto-discharge, remote probe, optional magnetic hanger
Buy the Buy Fluke FLUKE1507CAL Insulation Resistance Tester Part Number 1507CAL Online
Buy the highly dependable Fluke 1507 insulation resistance tester online today. Its rugged design, wide measurement range from 0.01 MΩ to 10 GΩ, and multiple test voltages make it ideal for electrical maintenance, testing, and troubleshooting. Features include automatic discharge, polarization index, dielectric absorption ratio, large backlit display, and safety standards compliance. Equipped with remote probe, test leads, alligator clips, and optional magnetic hanger, it provides easy operation in various environments. Invest in trusted quality necessary for professional electrical work.
Order your Fluke 1507 insulation tester today and ensure accurate, safe testing for electrical systems with reliable features and accessories.
Frequently Asked Questions
Where can I buy FLUKE FLUKE1507CAL?
You can click on the BUY or RFQ button to purchase FLUKE1507CAL from an authorized FLUKE distributor.
How do I troubleshoot issues or seek technical support for part FLUKE1507CAL?
You can download the FLUKE1507CAL datasheet or visit the FLUKE website for support.
Who is the manufacturer of FLUKE1507CAL?
FLUKE
