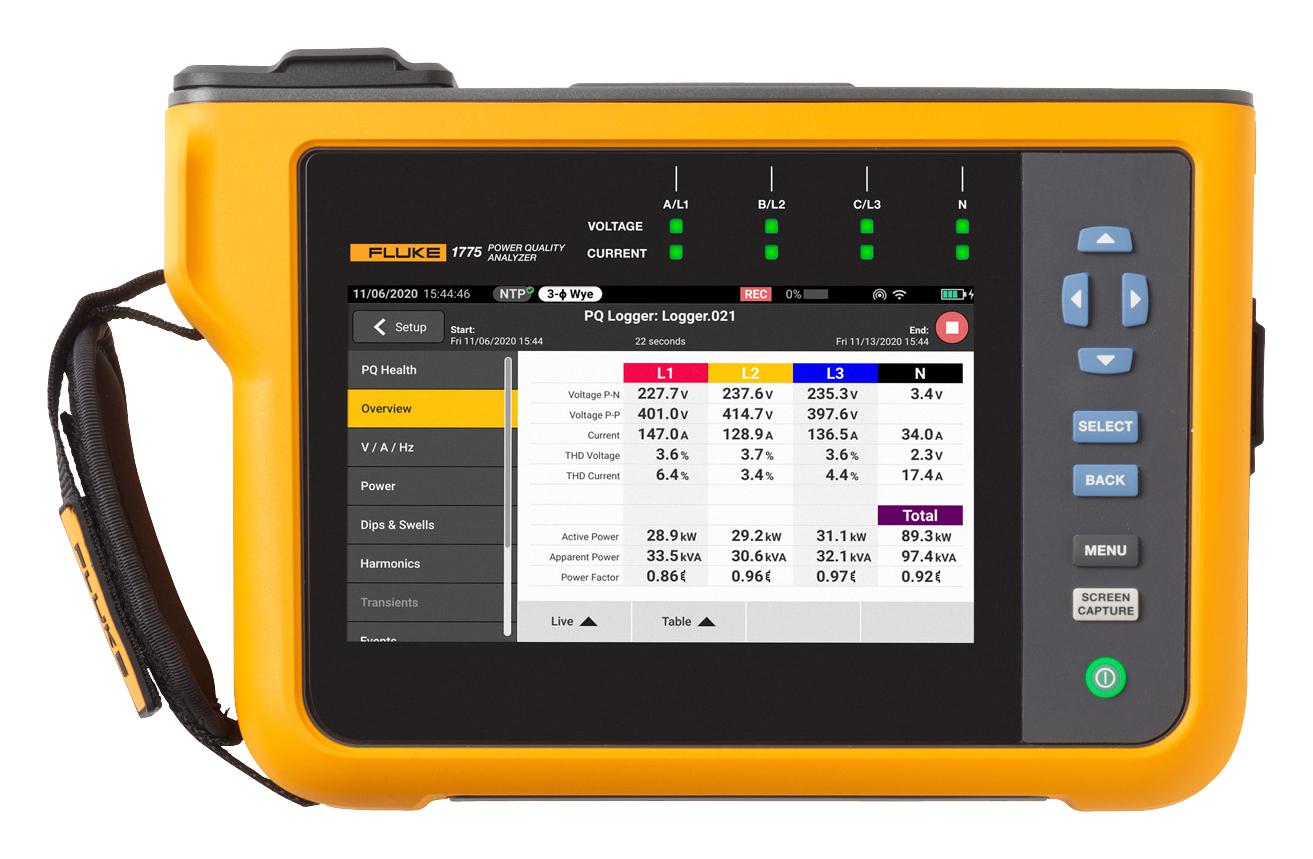

FLUKE FLUKE1775BASIC Power Quality Analyzer
The 1770 Series Basic Three-Phase Power Quality Analyzer is designed for comprehensive power quality assessment and troubleshooting. It offers automatic measurements with enhanced flexibility, making it ideal for energy surveys, load testing, harmonic analysis, and identifying issues like nuisance circuit breaker tripping or transient-related equipment failures. The device features an intuitive user interface, high-speed voltage transient capture, and powerful analysis software with straightforward report generation. Supported interfaces include Ethernet, USB Type-A, USB-C, and GPS, facilitating ease of data transfer and location tracking.
FLUKE FLUKE1775BASIC Power Quality Analyzer Specifications:
- Voltage Inputs: 4 inputs, 3 phases and neutral referenced to PE, maximum input voltage 1000 V CAT II / 600 V CAT IV, bandwidth DC to 30 kHz, resolution 24-bit, sampling frequency 80 kS/s.
- Voltage Transients: Range +8 kV, sampling rate up to 20 MS/s, bandwidth DC to 1 MHz, trigger adjustable, resolution 14-bit.
- Current Inputs: 4 inputs, ranging from 1 A to 6000 A depending on the sensor used, bandwidth DC to 30 kHz, resolution 24-bit, sampling frequency 80 kS/s.
- Accessories: Includes voltage test leads for three-phase and neutral, alligator clips, USB-C cable, line cord, test lead set, cable marker set, wall outlet adapter, and soft case.
- Power Supply: Internal battery with 1.5-hour runtime, powered via measurement circuit or external USB-C power supply; power consumption max 40 VA.
- Environmental: Operating temperature -10°C to 50°C, storage -20°C to 60°C, IP rating IP50, vibration tolerance IEC 60721-3-3: 3K5.
- Physical Dimensions & Weight: 28.0 cm x 19.0 cm x 6.2 cm, weight 2.1 kg.
- Standards & Compliance: IEC 61010-1, IEC 61010-2-030, IEC 61000-4-30 Class A, EN 50160, IEEE 519, GOST, NEQUAL, NETCODE, FOL.
- Data Storage & Connectivity: Internal memory 8 GB (expandable), data transfer via Ethernet, USB-C, USB-A, WiFi, LTE, GPS with external antenna support.
Buy the Fluke 1775 Reliable Power Quality Analyzer for Industrial Applications
Purchase the Fluke 1775 Power Quality Analyzer online today to enhance your troubleshooting, energy audits, and harmonic analysis. This versatile device combines automatic measurements, high-speed transient capture, intuitive interface, and comprehensive analysis software. Its robust construction and multiple data transfer options including Ethernet, USB, WiFi, and GPS make it ideal for field and workshop use. Get real-time data, generate compliant reports quickly, and improve system reliability. Invest in this reliable solution for professional power quality assessments and maintenance today.
Order your Fluke Series1775 Power Quality Analyzer today and ensure your electrical system’s reliability with advanced troubleshooting tools.
Frequently Asked Questions
Where can I buy FLUKE FLUKE1775BASIC?
You can click on the BUY or RFQ button to purchase FLUKE1775BASIC from an authorized FLUKE distributor.
How do I troubleshoot issues or seek technical support for part FLUKE1775BASIC?
You can download the FLUKE1775BASIC datasheet or visit the FLUKE website for support.
Who is the manufacturer of FLUKE1775BASIC?
FLUKE
