FLUKE FLUKE726 Process Calibrator

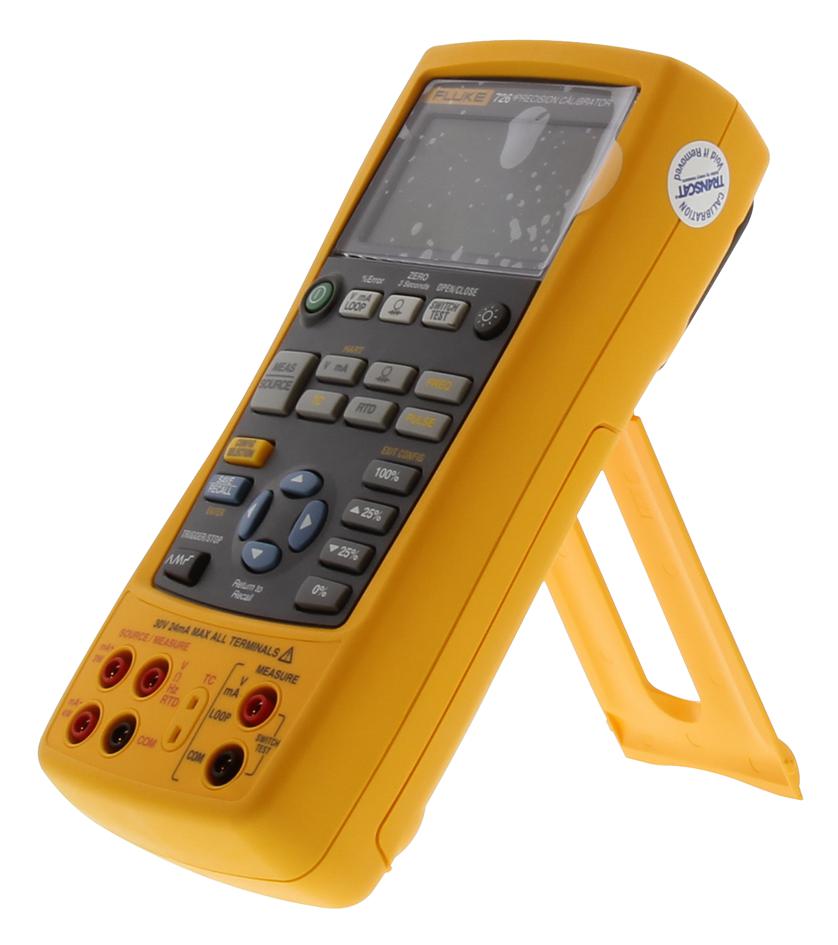

The Fluke 726 Precision Multifunction Process Calibrator is designed specifically for the process industry, providing comprehensive workload coverage, high calibration accuracy, and powerful measurement capabilities. It can measure and source almost all process parameters, including volts, milliamps, RTDs, thermocouples, frequency, resistance, and pressure (with appropriate modules). The device features two channels for simultaneous measurement and sourcing, stores up to eight calibration results, and includes tools such as error percentage calculation, linearity testing, and pressure switch testing. Additional features include pressure measurement with compatible modules, simultaneous pressure and current testing for valve and I/P calibration, and advanced functions like frequency totalizer and HART mode. It is suitable for signal processing, system monitoring, and testing applications. The package includes alligator clips, test leads, user manuals, NIST calibration reports, and traceable calibration data.
FLUKE FLUKE726 Process Calibrator Specifications:
- Voltage Measurement: 0 to 30 V, 0.01 V resolution, 0.01% accuracy
- Current Measurement: 0 to 24 mA, 0.001 mA resolution, 0.01% accuracy
- Resistance: 15 Q to 4000 Q, 0.01 Ohm resolution
- Frequency: 2.0 to 1,000 CPM, with compatibility up to 15.0 kHz
- RTD & Thermocouple Measurement: Pt 100, Ni 120, J, K, T, E, R, S, B, U, N; 0.01°C resolution; compatible with custom curves
- Pressure Measurement: Uses Fluke 700Pxx modules, with simultaneous pressure and current testing
- Size: 200 mm x 96 mm x 47 mm, weight: 650 g
- Battery Life: 25 hours, powered by four AA alkaline batteries
- Operating Conditions: -10°C to 55°C, humidity up to 90%, shock resistant from 1 meter drop
- Standards: CSA C22.2 No. 1010.1:1992, EMC EN50082-1:1992, EN55022:1994 Class B
Buy the Fluke Series 726 Process Calibrator: FLUKE726
Purchase the Fluke 726 Process Calibrator online today and enjoy top-tier accuracy, dual-channel measurement, comprehensive parameter testing, and easy calibration data storage. Ideal for the process industry, it supports volts, milliamps, RTDs, thermocouples, resistance, frequency, and pressure measurement through compatible modules. Including alligator clips, test leads, manuals, and traceable calibration reports, this calibrator ensures reliable system monitoring, efficient signal testing, and precise calibration. Order now for fast delivery and enhance your process calibration capabilities with Fluke’s trusted technology.
Get Fluke 726 today—built for precision and long-lasting durability in process calibration and testing.
Frequently Asked Questions
Where can I buy FLUKE FLUKE726?
You can click on the BUY or RFQ button to purchase FLUKE726 from an authorized FLUKE distributor.
How do I troubleshoot issues or seek technical support for part FLUKE726?
You can download the FLUKE726 datasheet or visit the FLUKE website for support.
Who is the manufacturer of FLUKE726?
FLUKE
