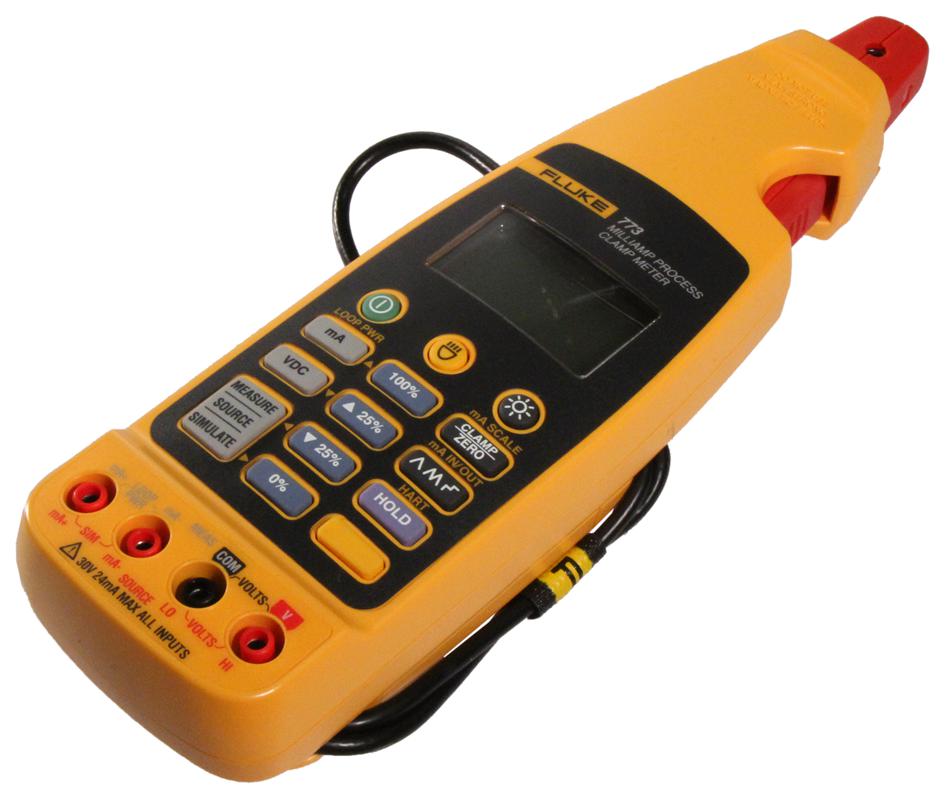

FLUKE FLUKE773 Milliamp Clamp Meter
The Fluke 773 Milliamp Process Clamp Meter enables you to measure, source, and simulate 4 to 20 mA signals without breaking the circuit, saving time in troubleshooting and calibration tasks. It features in-circuit measurement, simultaneous mA measurement with 24V loop power, and adjustable output signals in linear ramp or step modes. The device includes power-saving features such as auto-off and backlight timeout, and is suitable for industrial, maintenance, repair, test and measurement, and oil and gas applications. Included accessories are four AA batteries, a soft carrying case, test leads, clip, mini hook leads, instruction sheet, and a hanging tool.
FLUKE FLUKE773 Milliamp Clamp Meter Specifications:
- Measurement Range: 0 to 24.00 mA with 0.2% accuracy
- Maximum Drive Current: 24 mA
- Voltage Measurement: 0 to 30 V DC with 0.2% accuracy
- Source Voltage: 0 to 10 V DC with 0.2% accuracy
- Scaled mA Output: Linear ramp or 25% step; simulates 4 to 20 mA signals
- Dimensions: 41.3 mm x 76 mm x 248 mm (1.625 in x 3 in x 9.75 in)
- Weight: 415 g (14.02 oz)
- Power: Four 1.5 V AA batteries, approx. 12 hours working time at 12 mA load
- Operating Temperature: -10°C to 50°C
- Storage Temperature: -25°C to 60°C
- IP Rating: IP40
- Humidity: <90% @ <30°C; <75% @ 30-55°C
- Drop Test: 1 meter drop test passed
- Compliance: EN61326-1
Buy the Fluke FLUKE773 – Reliable Milliamp Process Clamp for Industrial Applications
Enhance your industrial troubleshooting with the Fluke 773 Milliamp Process Clamp Meter, offering in-circuit measurement, live signal sourcing, and simulation. Its precise measurement, simultaneous mA and voltage readings, and adjustable output modes streamline control system testing. Compact and durable, it features power-saving auto-off, backlight timeout, and comes with essential accessories like test leads and a soft carrying case. Ideal for maintenance, calibration, and control system validation in industrial settings, oil and gas, and process automation environments, ensuring accurate results every time.
Buy Fluke FLUKE773 now and experience unmatched reliability and performance in industrial process measurement and troubleshooting.
Frequently Asked Questions
Where can I buy FLUKE FLUKE773?
You can click on the BUY or RFQ button to purchase FLUKE773 from an authorized FLUKE distributor.
How do I troubleshoot issues or seek technical support for part FLUKE773?
You can download the FLUKE773 datasheet or visit the FLUKE website for support.
Who is the manufacturer of FLUKE773?
FLUKE
