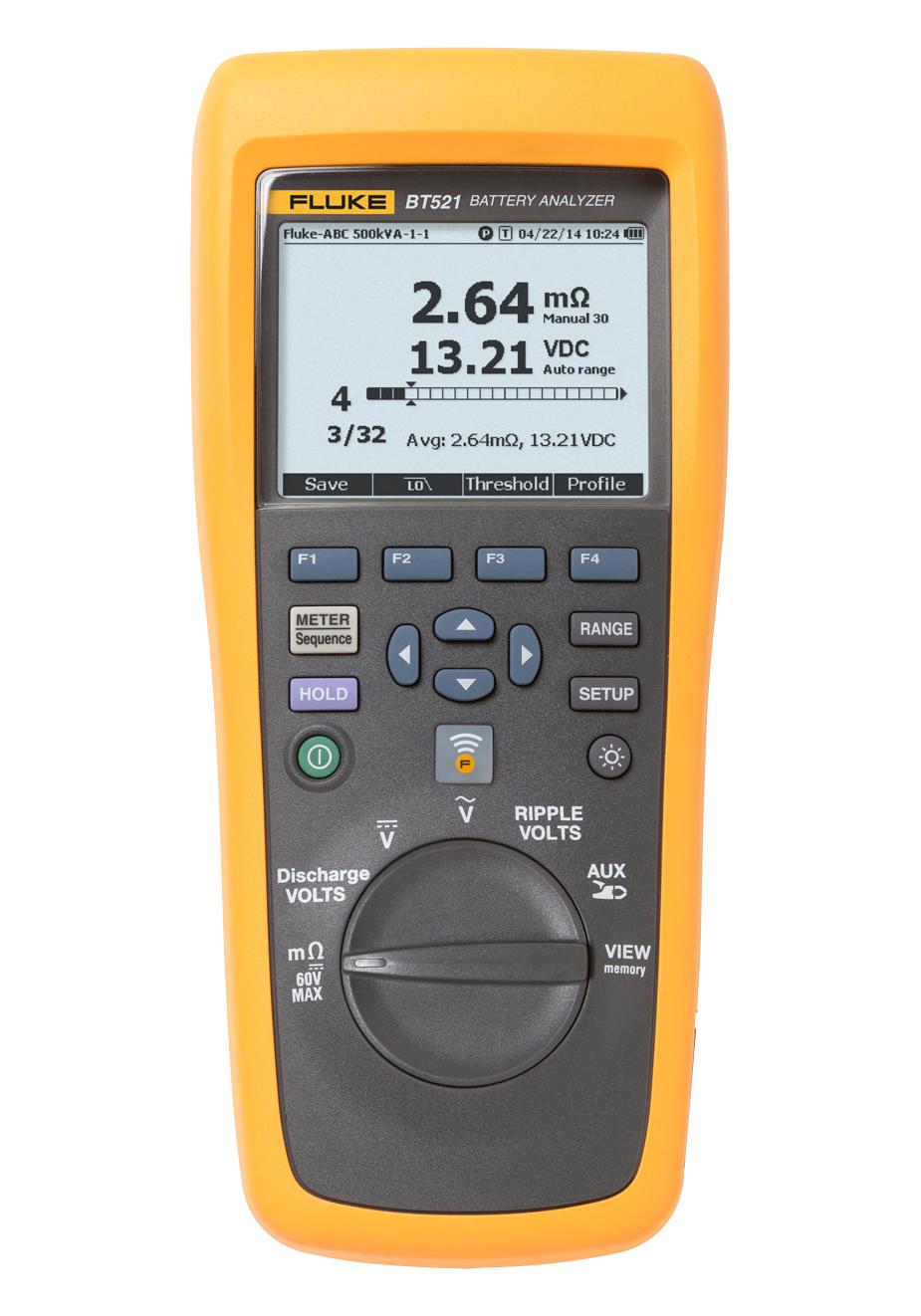

FLUKE FLUKEBT521ANG Battery Testing Device
The Fluke 500 series battery analyzer is an essential tool for maintenance, troubleshooting, and performance testing of stationary batteries and battery banks used in critical backup applications. It features an intuitive interface, durable design, and versatile testing functions including voltage, resistance, ripple, frequency, and temperature measurements. Equipped with angled and long-reach probes, rugged Kelvin test pins, and infrared temperature sensing, it allows automated string testing, intercell resistance measurement, and threshold configuration. The device supports trend analysis, report generation, and fast data transfer via USB, ensuring safe operation around battery systems and comprehensive battery management.
FLUKE FLUKEBT521ANG Battery Testing Device Specifications:
- Size: 22 cm x 10.3 cm x 5.8 cm (9 in x 4 in x 2 in)
- Weight: 850 g (1.9 lb)
- Screen: 7.1 cm x 5.6 cm (3 in x 2.2 in)
- Interface: USB mini
- Battery: 7.4 V, 3000 mAh lithium-ion, >8 hours continuous use
- Operating Temperature: 0°C to 40°C
- Storage Temperature: -20°C to 50°C
- Operating Humidity: ≤80% RH at 10°C to 30°C, ≤75% RH at 30°C to 40°C
- Operating Altitude: Sea level to 2000 meters
- Storage Altitude: Sea level to 12,000 meters
- IP Rating: IP40
- Vibration: MIL-PRF-28800F Class 2
- Drop Test: 1 meter
- Safety Rating: CAT III 600 V / 1000 V DC
- Compliance: IEC 61326, ROHS, UN38.3, UL2054, IEC 62133
- Vde (Voltage): 6V (0.001V, 0.09%), 60V (0.01V, 0.09%), 600V (0.01V, 0.09%), 1000V (0.01V, 0.09%)
- Resistance: 3mΩ to 3000mΩ (0.8% +6 to 1% +68)
- AC/DC Voltage and Current: Up to 600V, 400A (3.5% +2)
- Frequency and Ripple Voltage Measurements included
- Sequence testing for multiple battery profiles
- Data storage: Up to 100 profiles, 450 batteries each
Buy the Fluke Series Battery Analyzer: FLUKEBT521ANG
Purchase the Fluke Series Battery Analyzer FLUKEBT521ANG online to enhance your battery maintenance routine. Its advanced features include automated string testing, temperature measurement, threshold configuration, and comprehensive data logging. With rugged probes, user-friendly interface, and fast USB data transfer, it simplifies testing of stationary batteries used in critical backup systems. Ensure safety with CAT III 600V/1000V ratings and improve operational efficiency through quick report generation and trend analysis. Buy now for reliable, professional-grade battery diagnostics.
Get Fluke battery analyzer FLUKEBT521ANG today—built for precise maintenance and long-lasting durability in critical battery backup testing.
