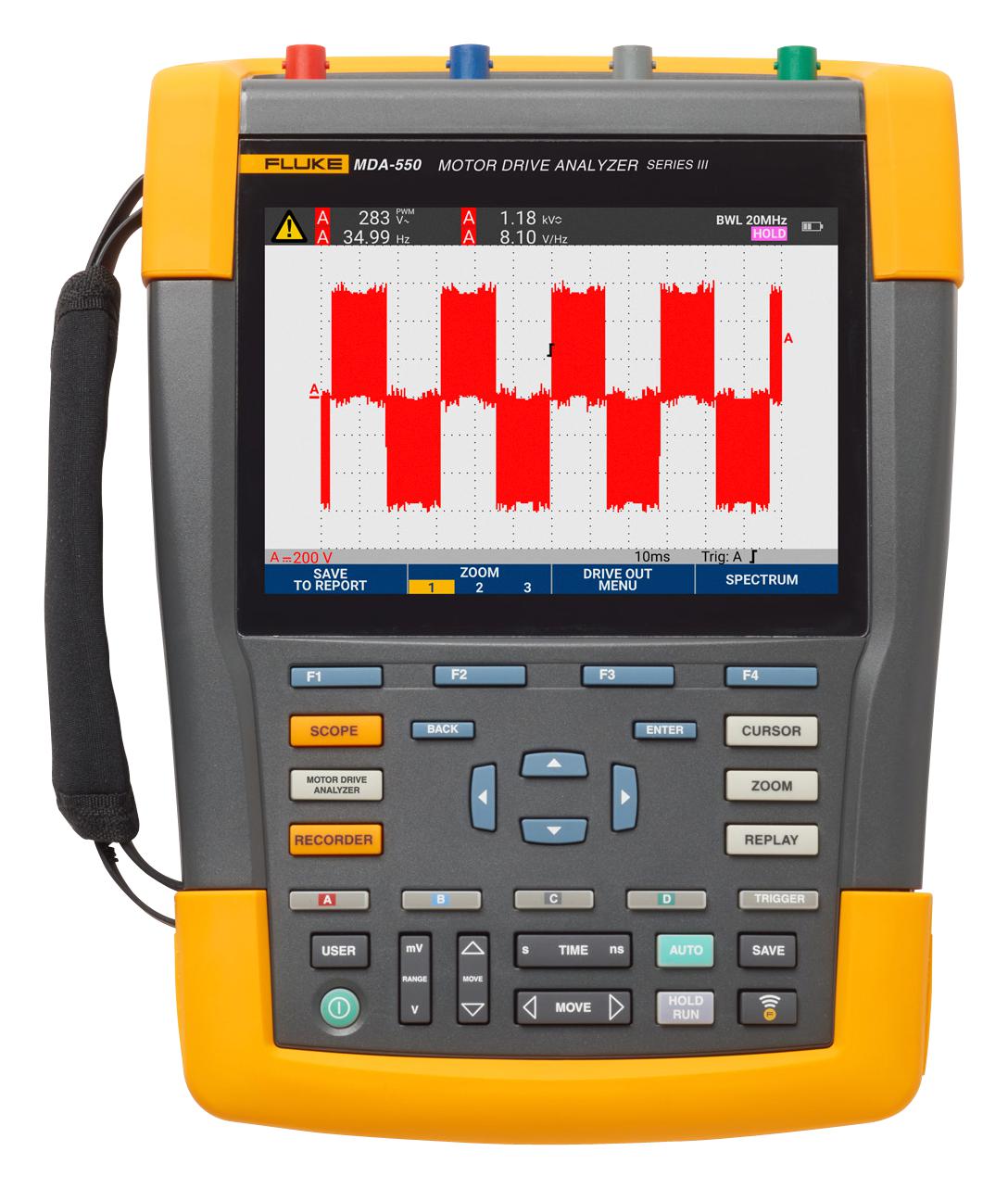

FLUKE FLUKEMDA550III Motor Drive Analyzer
The Fluke MDA 550 motor-drive analyzer simplifies the testing and troubleshooting of inverter-based motor-drive systems. It offers guided measurement setup, allowing users to easily capture voltage, current, and harmonic data from input to output, including the DC bus and motor. The device measures inverter output voltage, DC bus voltage and ripple, as well as harmonic and unbalance analysis. Combining waveform analysis and data logging in a single unit, it is rated for 600V CAT IV and 1000V CAT III, suitable for use at service entrances and downstream. Its extended harmonic measurement capabilities help identify low and high order harmonic effects. The instrument features a built-in report generator for quick documentation of as-found and as-left testing results, making it a versatile and portable solution for motor-drive troubleshooting.
FLUKE FLUKEMDA550III Motor Drive Analyzer Specifications:
- Maximum voltage with 10:1 or 100:1 probe: 1000 V
- Resolution: 1 mV / 10 mV
- Full scale reading: 999 counts
- Accuracy: 1.5 % + 6 counts
- Safety ratings: 600 V CAT IV / 1000 V CAT III
- Frequency range: DC to 500 MHz
- Harmonics measurement: 1 to 9 kHz, 9 kHz to 150 kHz
- Input measurement: Voltage, current, harmonic spectrum, voltage unbalance, current unbalance
- DC bus ripple measurement: Vpk-to-pk, ripple Hz, Vdc
- Drive output testing: Voltage, modulation, frequency, waveform
- Motor shaft voltage detection with carbon fiber brush probe
- Built-in report generator for quick documentation
- Rated for use at service entrance and downstream
Buy the Buy Fluke MDA 550 Part Number FLUKEMDA550III Online
Enhance your motor-drive troubleshooting capabilities with the Fluke MDA 550 analyzer. Featuring guided measurements, waveform analysis, extensive harmonic spectrum, and a built-in report generator, it simplifies complex motor-inverter diagnostics. Its portable design and high safety ratings make it ideal for use at service entrances and downstream applications. Quickly identify issues related to voltage, current, harmonics, and unbalance while generating comprehensive reports for effective maintenance and troubleshooting. This versatile device ensures reliable, efficient, and safe operation of inverter-driven motors in industrial systems.
Buy Fluke MDA 550 now and experience unmatched reliability and performance in motor-drive troubleshooting with advanced harmonic and waveform analysis.
