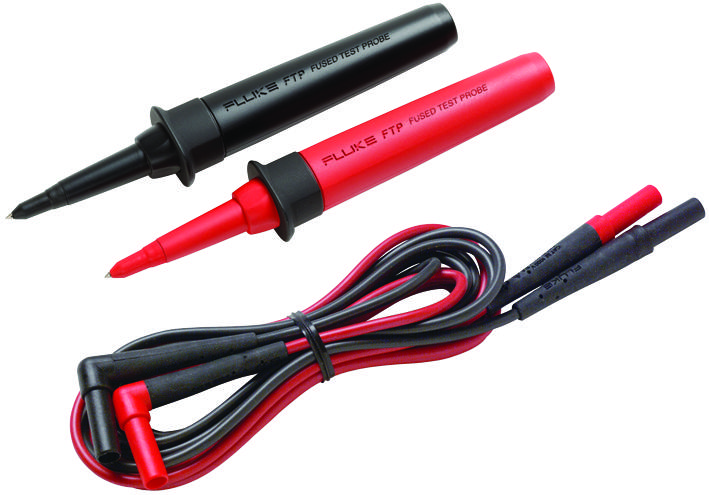

FLUKE FTPL1 Fused Test Probe Set
The FTPL-1 is a fused test probe set designed for safe electrical testing and measurement. It features test leads with built-in fuses rated at 1000V and 11A, with a 20kA interrupt rating, ensuring enhanced protection. Even if the fuse blows, the probes can still detect live voltage, preventing misleading readings of no voltage and enhancing safety during troubleshooting. The set includes removable tip guards to minimize exposure, 2mm threaded tips with interchangeable spring contacts and insulated caps for closely spaced leads, and ships with Fluke TL224 silicone test leads. These leads have right-angle and straight connectors, reinforced strain reliefs, and 1.5m heat-resistant insulation, operating effectively from -20°C to 50°C. Suitable for electrical testing, these probes have CAT III 1000V and CAT IV 600V safety ratings for reliable, safe measurements in various electrical environments.
FLUKE FTPL1 Fused Test Probe Set Specifications:
- Rated Voltage: 1000 V
- Rated Current: 11 A
- Interrupt Rating: 20 kA
- Fuse Part Number: 803293
- Tip Size: 2 mm threaded
- Spring Contacts: Removable
- Insulated Caps: Removable for closely spaced leads
- Lead Length: 1.5 meters
- Connector Type: Right angle and straight
- Wire Insulation: Silicone, heat and cold resistant
- Operating Temperature: -20 °C to 50 °C (-5 °F to 120 °F)
- Safety Ratings: CAT III 1000 V, CAT IV 600 V
- Warranty: One year
Buy the Fluke Series FTPL Fused Test Probe: FTPL1
Enhance your electrical measurement safety with the Fluke FTPL1 fused test probe set. Featuring built-in fuses rated at 1000V and 11A, these probes provide continuous voltage indication even when the fuse blows, reducing measurement errors. The set includes removable tip guards, interchangeable tips, and silicone-insulated leads designed for demanding environments with temperatures from -20°C to 50°C. With reinforced strain reliefs and CAT safety ratings, these probes are ideal for precise, reliable electrical testing. Order online today for safety and performance you can trust.
Buy Fluke FTPL1 fused test probe set now and experience unmatched measurement safety and reliability in electrical testing applications.
