FLUKE I310SCALDU Datasheet & Stock

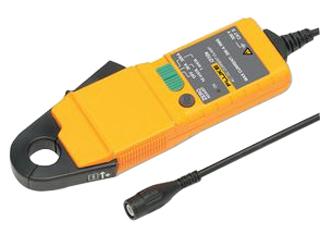

The Fluke I310S CAL DU is an AC/DC current probe based on Hall effect technology, enabling accurate measurement of both AC and DC currents. It can measure currents up to 450A peak, with a frequency range from DC to 20kHz. Suitable for use with oscilloscopes and recording instruments, this clamp is ideal for testing inverters, switch mode power supplies, industrial controllers, and automotive diagnostics. It features a calibrated design with data and uncertainties, measuring from 30A and 300A AC RMS or ±45A and 450A DC, with inrush current capability up to 600A AC. Output sensitivity is 10mV/A at 30A and 1mV/A at 300A. The device offers an accuracy of ±1% of reading plus a small margin, with a bandwidth of up to 1kHz and phase shift less than 2 degrees below 1kHz. The clamp accommodates conductors up to 19mm in diameter, includes a 2m output cable, and is powered by a 9V alkaline battery with a 30-hour lifespan. Operating temperature ranges from -10°C to +50°C, and it weighs 250g.
Frequently Asked Questions
Where can I buy FLUKE I310SCALDU?
You can click on the BUY or RFQ button to purchase I310SCALDU from an authorized FLUKE distributor.
How do I troubleshoot issues or seek technical support for part I310SCALDU?
You can download the I310SCALDU datasheet or visit the FLUKE website for support.
Who is the manufacturer of I310SCALDU?
FLUKE
