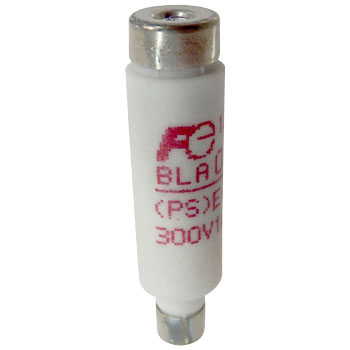

FUJI ELECTRIC BLA010D Slim Circuit Protector
FUJI ELECTRIC's CP-F series circuit protectors offer a compact and high-performance solution for circuit protection in a variety of applications. Their thin size reduces mounting space by 30% compared to conventional types, making them suitable for use in office and industrial equipment. These protectors incorporate advanced technology, offering features like AC/DC common use, auxiliary and alarm switches, inertia delay characteristics, and a trip-free mechanism. They are designed to provide reliable protection and are IEC rail mountable.
FUJI ELECTRIC BLA010D Slim Circuit Protector Specifications:
- Type: CP31F, CP32F, CP33F
- Pole: 1-pole, 2-pole, 3-pole
- Rated insulation voltage (Ui): 250V AC
- Rated operational voltage (Ue): 250V AC
- Rated current: 0.1, 0.3, 0.5, 1, 2, 3, 5, 7, 10, 15, 20, 25, 30A
- Rated breaking capacity: 2500A at 240V AC, 2500A at 60V DC (1-pole), 2500A at 120V DC (2-pole)
- Operating characteristic: Long time delay (AC circuit only), Medium time delay, Instantaneous tripping
- Tripping mechanism: Hydraulic-magnetic
- Ambient temperature: –10 to +60°C
- Dielectric strength: 2000V AC 1min
- Electrical durability: 10000 operations or more
- Terminals (Main circuit): M5 (25A or over), M4 (20A or less)
- Terminals (Auxiliary circuit): M3.5
- Mass (Approx.): 80g (1-pole), 160g (2-pole), 240g (3-pole)
