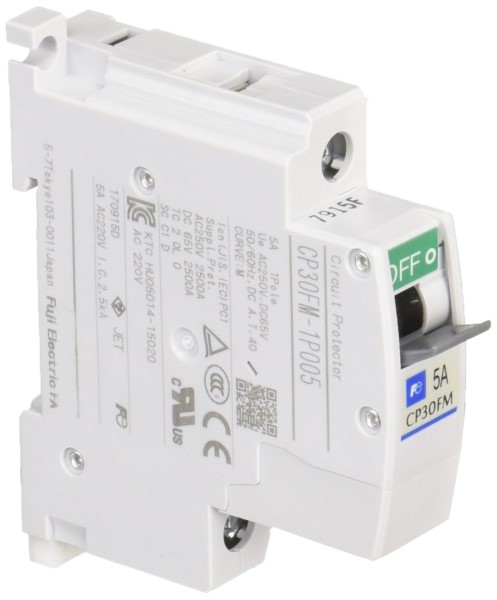

FUJI ELECTRIC CP30FM1P005WA Circuit Protector
The FUJI ELECTRIC CP30FM-1P005WA circuit protector is designed for protection of control circuits and devices in various control panels. Its ultra-slim 17.5 mm per pole width and compliance with IEC, UL, GB, KC, JIS, and PSE standards make it suitable for a wide range of industrial applications. The screw lift-up terminals provide finger protection, and the revised terminal arrangement simplifies wiring. Auxiliary and alarm switches can be integrated to provide additional functionality, such as remote indication of circuit status. It is available with long time delay, medium time delay, and instantaneous tripping mechanisms.
FUJI ELECTRIC CP30FM1P005WA Circuit Protector Specifications:
- Series: CP30F
- Number of Poles: 1
- Rated Insulation Voltage: 250 V AC (50/60 Hz)
- DC Compatibility: 65 V DC
- Rated Current: 0.1, 0.3, 0.5, 1, 2, 3, 5, 7, 10, 15, 20, 25, 30 A
- Rated Breaking Capacity: 2,500 A
- Operating Characteristic: Long time delay (S), medium time delay (M), and instantaneous (I) types
- Tripping Mechanism: Hydraulic magnetic type
- Reference Temperature: +40°C
- Operating Ambient Temperature: -10 to +60°C
- Make/Break Durability: 10,000 operations min.
- Main Circuit Terminal: M5 screw (over 20 A)/M4 screw (up to 20 A)
- Auxiliary Circuit Terminal: M3.5 screw
- Mounting Method: Front mounting type M4 screw/IEC35 mm rail compatible
- Auxiliary Switch: Can be integrated: 1NO or 1NC contact
- Alarm Switch: Can be integrated: 1NO or 1NC contact
- Dimensions (W x L x H): 17.5 x 73 x 66.3 mm
Buy the CP30FM-1P005WA FUJI ELECTRIC Circuit Protector | myMectronic
Purchase the FUJI ELECTRIC CP30FM-1P005WA circuit protector securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy FUJI ELECTRIC CP30FM1P005WA?
You can click on the BUY or RFQ button to purchase CP30FM1P005WA from an authorized FUJI ELECTRIC distributor.
How do I troubleshoot issues or seek technical support for part CP30FM1P005WA?
You can download the CP30FM1P005WA datasheet or visit the FUJI ELECTRIC website for support.
Who is the manufacturer of CP30FM1P005WA?
FUJI ELECTRIC
